IMBA-C2260-i2 ATX Motherboard
Page 24

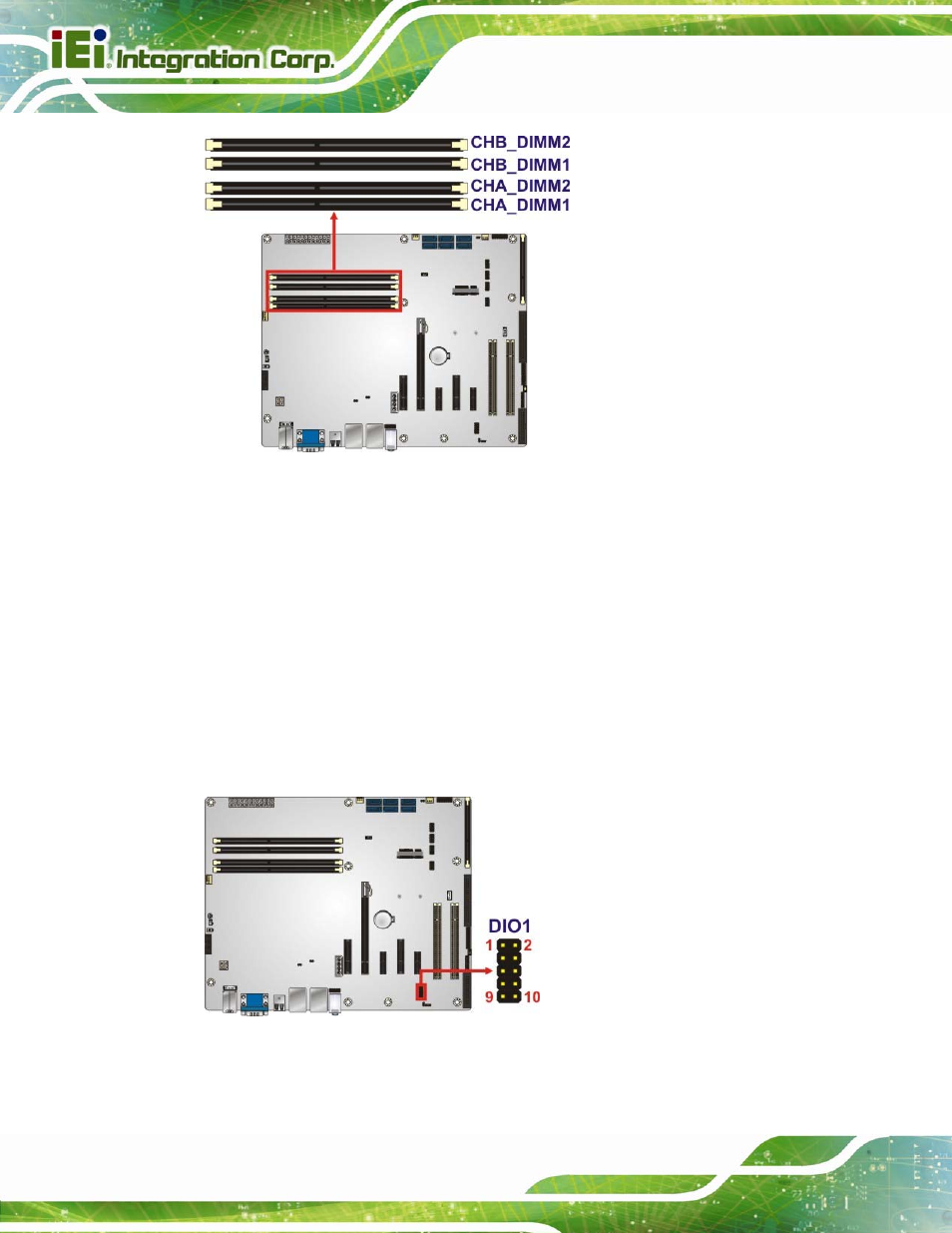

Figure 3-7: DDR3 DIMM Slot Locations
3.2.7 Digital I/O Connector
CN Label: DIO1
CN Type: 10-pin header
CN Location: See Figure 3-8
CN Pinouts: See Table 3-7
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 4-bit output and 4-bit input.
Figure 3-8: Digital I/O Connector Location
