IMBA-C2260-i2 ATX Motherboard

Page 65

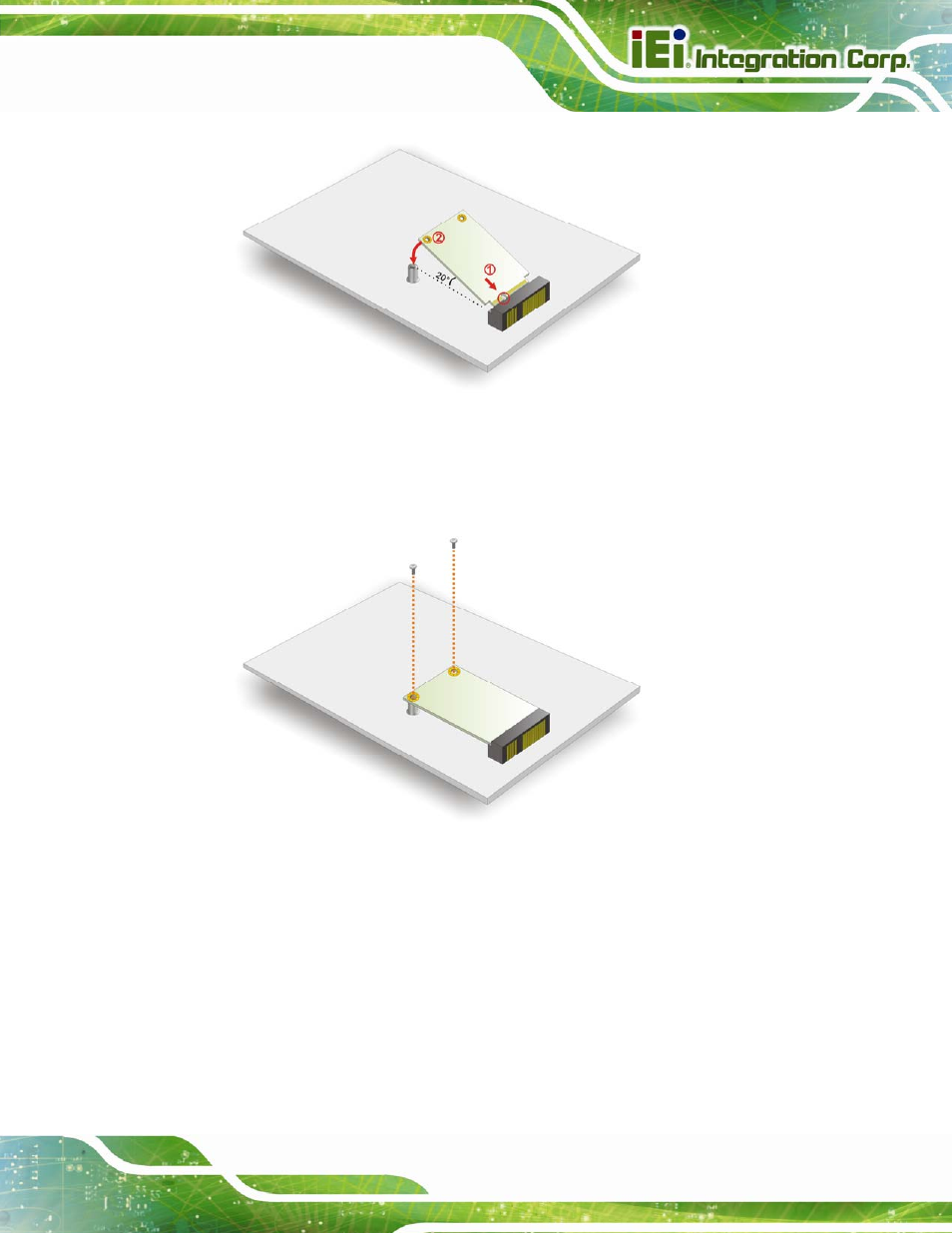

Figure 4-9: Insert the mSATA Card into the Socket at an Angle

Step 4:

Secure the mSATA card. Secure the mSATA card with the retention screws

previously removed (

9

Figure 4-10).

Step 0:

Figure 4-10: Secure the mSATA Card
