IMBA-C2260-i2 ATX Motherboard
Page 47
3.2.31 TPM Connector
CN Label: TPM1
CN Type: 20-pin header
CN Location: See Figure 3-32
CN Pinouts: See Table 3-27
The TPM connector connects to a TPM module.

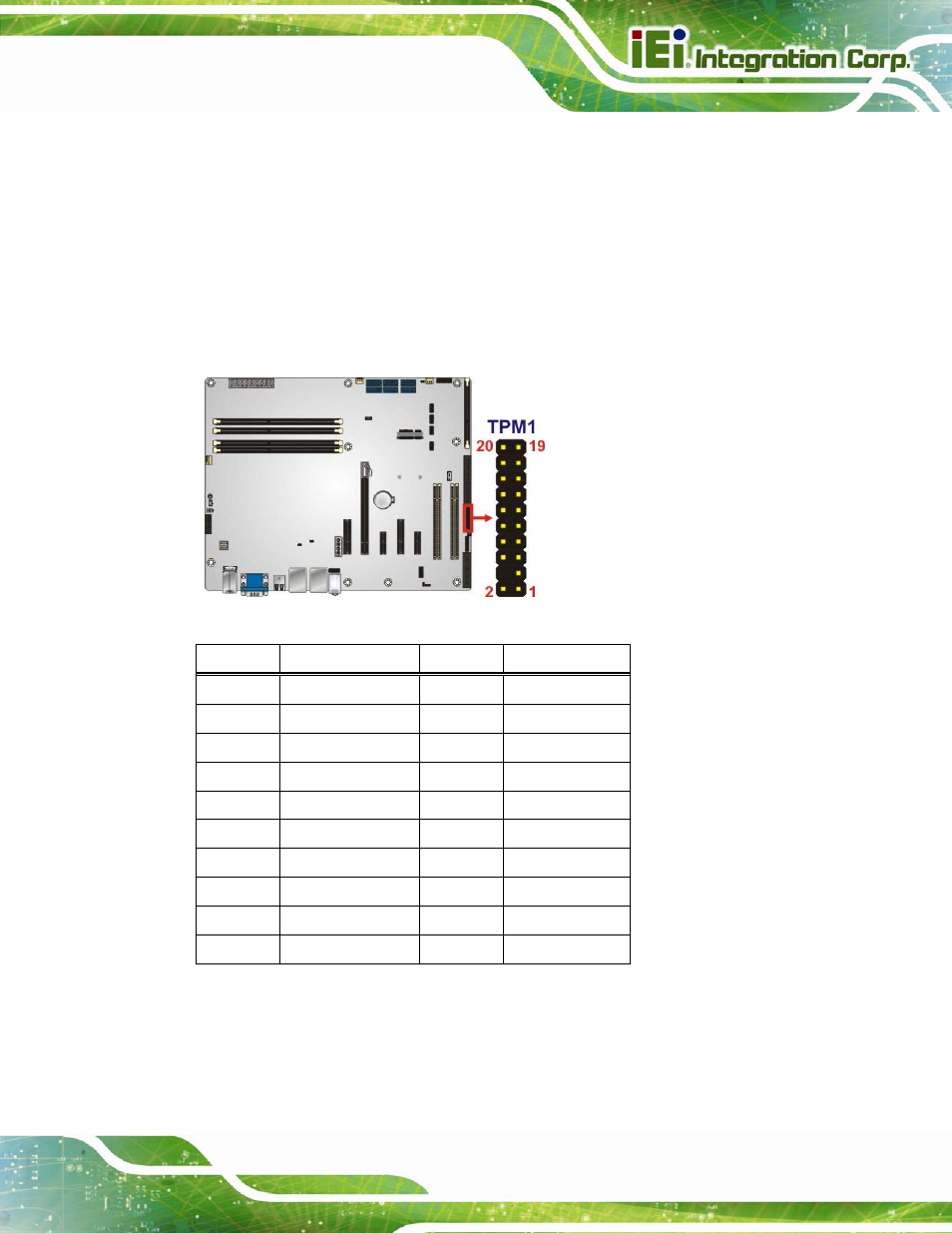

Figure 3-32: TPM Connector Location
Pin Description Pin Description
1 LCLK 2 GND
3 LFRAME# 4 KEY
5 LRERST# 6 +5V
7 LAD3 8 LAD2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 3-27: TPM Connector Pinouts
