IMBA-C2260-i2 ATX Motherboard

Page 34

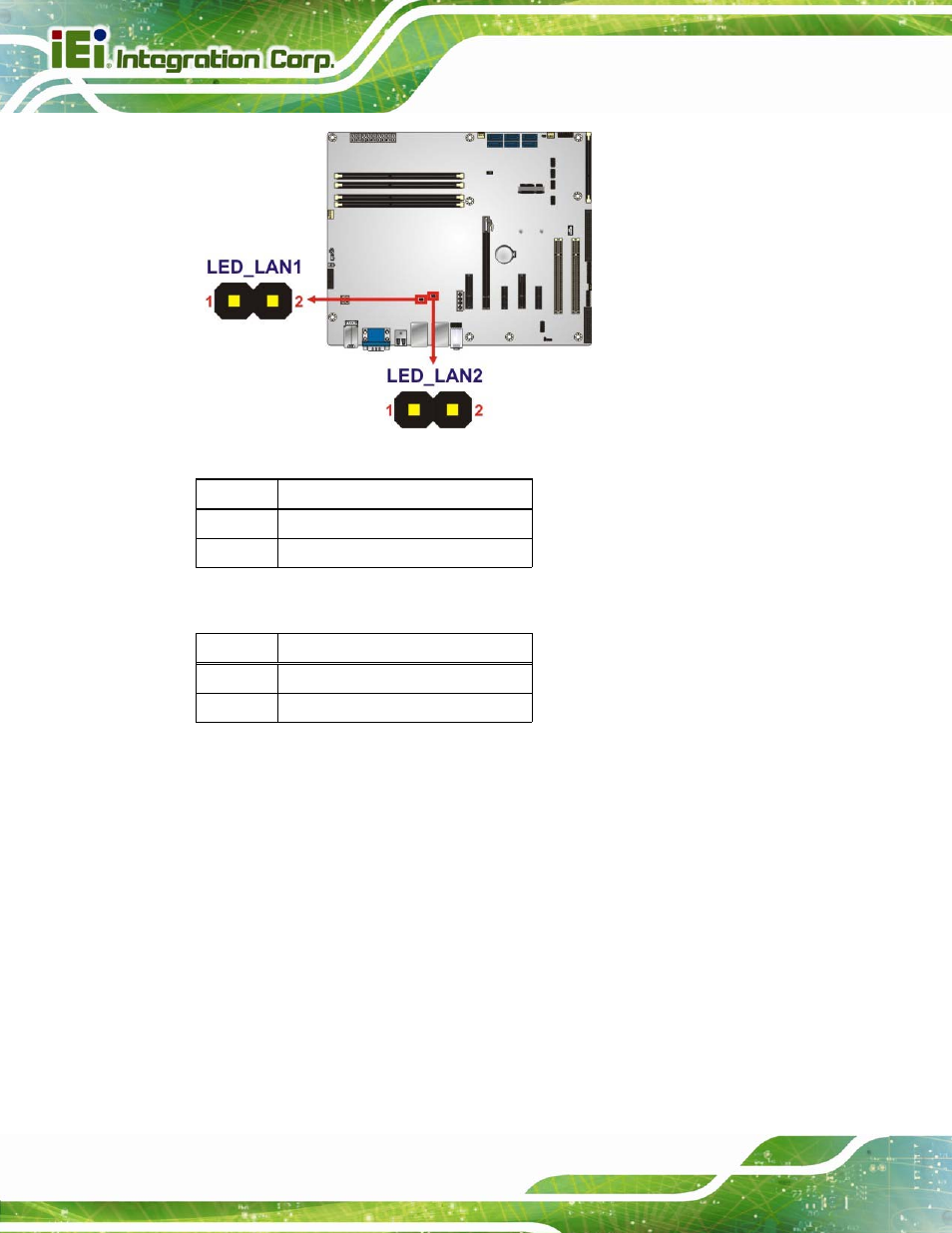

Figure 3-18: LAN LED Connector Locations

Pin Description

1 +3.3V

2 LAN1_LED_LINK#_ACT

Table 3-16: LAN1 LED Connector (LED_LAN1) Pinouts

Pin Description

1 +3.3V

2 LAN2_LED_LINK#_ACT

Table 3-17: LAN2 LED Connector (LED_LAN2) Pinouts

3.2.18 mSATA Card Slot

CN Label:

CN2

CN Type:

PCIe Mini slot

CN Location:

See

8

Figure 3-19

CN Pinouts:

See Table 3-18

The mSATA card slot is for installing mSATA cards or USB devices only
