4.5 System Configuration
The system configuration should be performed before installation.
4.5.1 AT/ATX Power Mode Setting
The AT and ATX power mode selection is made through the AT/ATX power mode switch
which is shown in Figure 4-11.

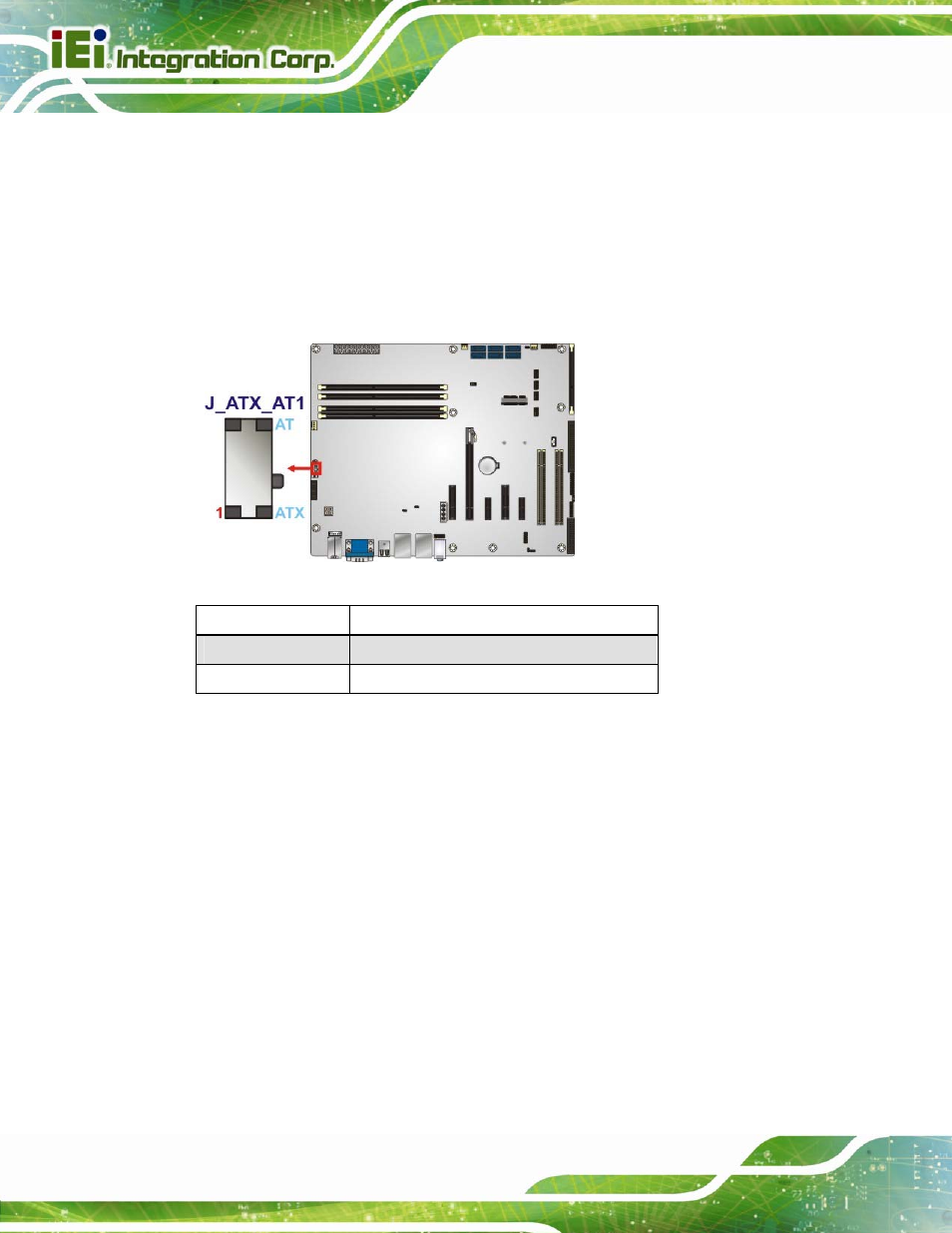

Figure 4-11: AT/ATX Power Mode Switch Location
Setting Description
1-2 ATX power mode (default)
2-3 AT power mode
Table 4-1: AT/ATX Power Mode Switch Settings
4.5.2 Clear CMOS Button
To reset the BIOS, remove the on-board battery and press the clear CMOS button for
three seconds or more. The clear CMOS button location is shown in Figure 4-12.
