IMBA-C2260-i2 ATX Motherboard

Page 61

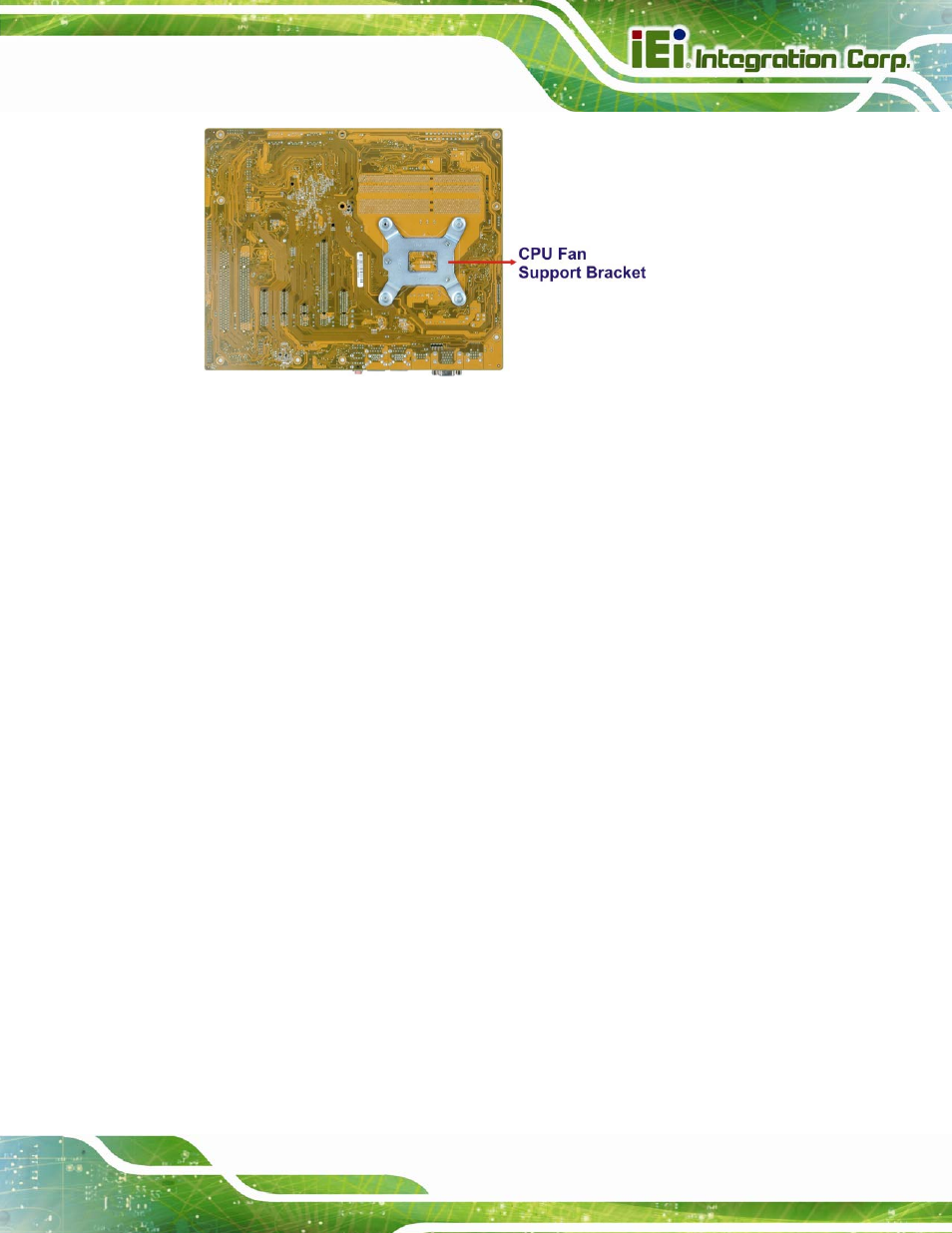

Figure 4-5: Cooling Kit Support Bracket

Step 2:

Place the cooling kit onto the socket LGA1150 CPU. Make sure the CPU

cable can be properly routed when the cooling kit is installed.

Step 3:

Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make

sure the four threaded screws on the corners of the cooling kit properly pass

through the holes of the cooling kit bracket.

Step 4:

Secure the cooling kit by fastening the four retention screws of the cooling kit.

Step 5:

Connect the fan cable. Connect the cooling kit fan cable to the CPU fan

connector on the IMBA-C2260-i2. Carefully route the cable and avoid heat

generating chips and fan blades.

Step 0:
