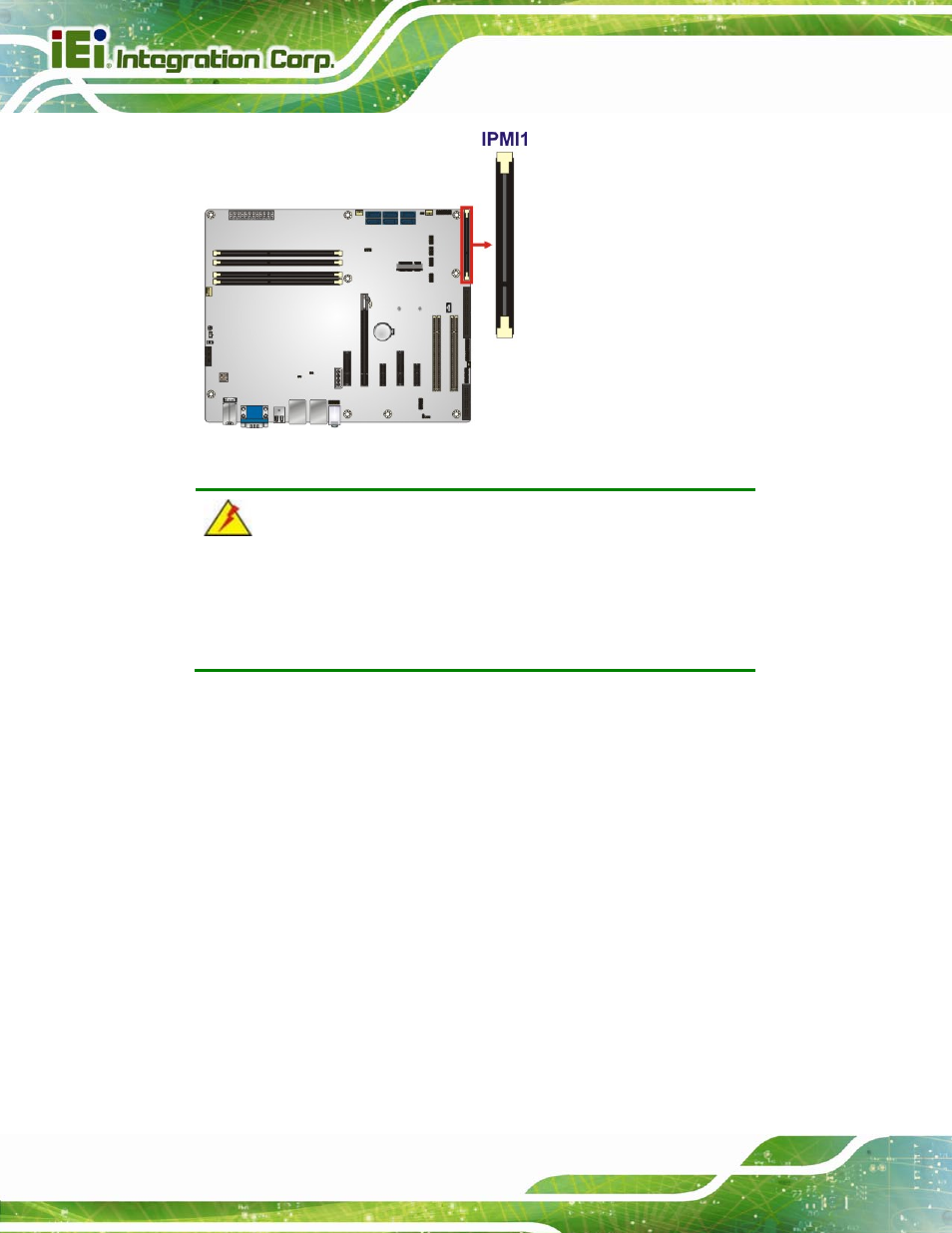

Figure 3-16: iRIS Module Slot Location
WARNING:
The iRIS module slot is designed to install the iRIS-2400 module only.
DO NOT install other modules into the iRIS module slot. Doing so may
cause damage to the IMBA-C2260-i2.
3.2.16 Keyboard and Mouse Connector
CN Label: KB_MS1
CN Type: 6-pin wafer
CN Location: See Figure 3-17
CN Pinouts: See Table 3-15
The keyboard and mouse connector connects to a PS/2 Y-cable that can be connected to
a PS/2 keyboard and mouse.
