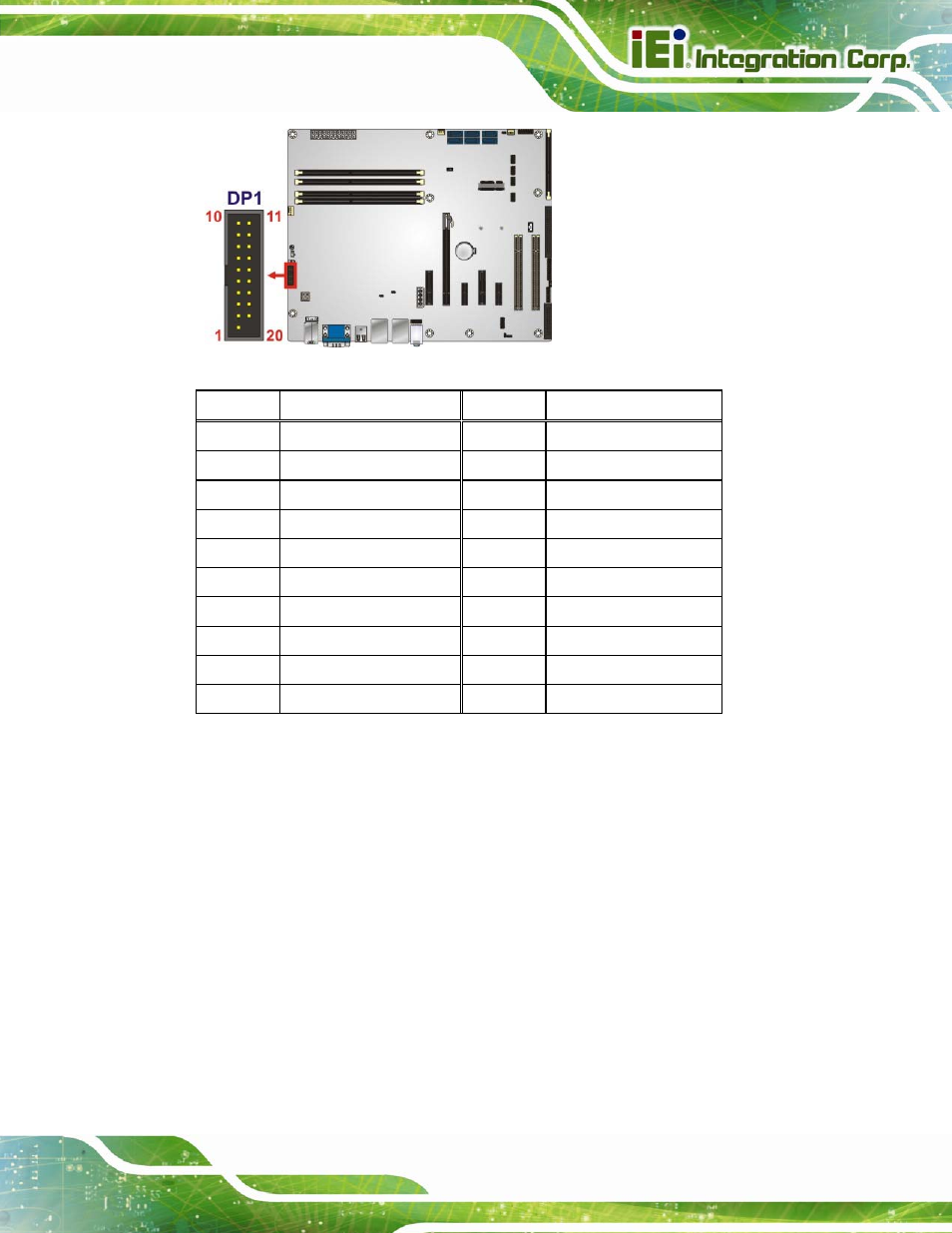

Figure 3-15: Internal DisplayPort Connector Location
Pin Description Pin Description
1 +5V 11 AUXP
2 LANE1N 12 AUXN
3 LANE1P 13 GND
4 GND 14 LANE2P
5 LANE3N 15 LANE2N
6 LANE3P 16 GND
7 GND 17 LANE0P
8 AUX_CTRL_DET_D 18 LANE0N
9 GND 19 +3.3V
10 HPD
Table 3-14: Internal DisplayPort Connector Pinouts
3.2.15 iRIS Module Slot
CN Label: IPMI1
CN Type: iRIS module slot
CN Location: See Figure 3-16
The iRIS module slot allows installation of the iRIS-2400 module.
