IMBA-C2260-i2 ATX Motherboard

Page 27

3.2.10 Fan Connectors (System)

CN Label:

SYS_FAN1, SYS_FAN2

CN Type:

3-pin wafer

CN Location:

See Figure 3-11

CN Pinouts:

See Table 3-10

Each fan connector attaches to a system cooling fan.

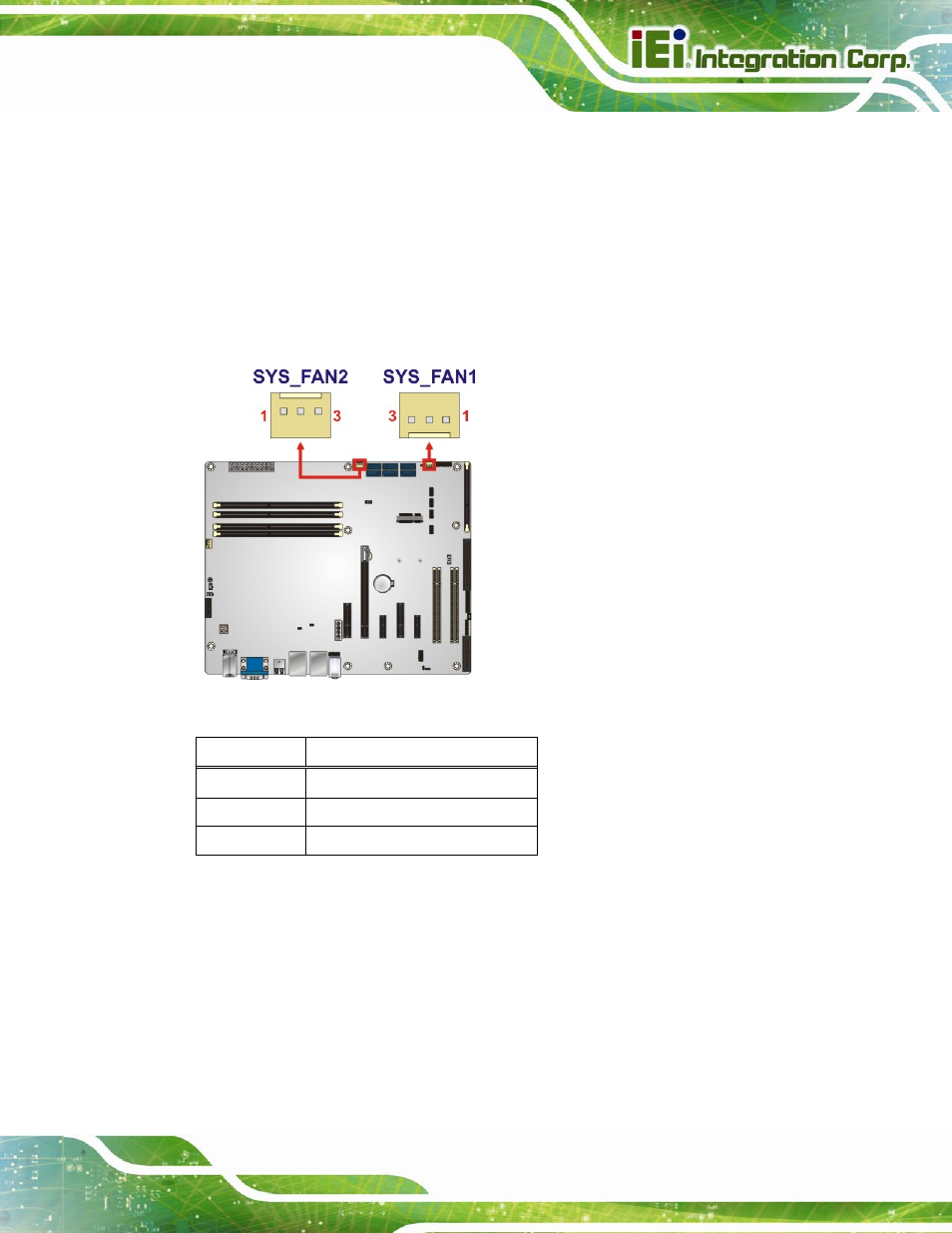

Figure 3-11: System Fan Connector Locations

Pin

Description

1

FANIO

2

+12V (PWM)

3

GND

Table 3-10: System Fan Connector Pinouts

3.2.11 Front Panel Audio Connector

CN Label:

FRONT-PANEL1

CN Type:

10-pin header

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-11
