IMBA-C2260-i2 ATX Motherboard
Page 53
Pin Description Pin Description
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-34: VGA Connector Pinouts

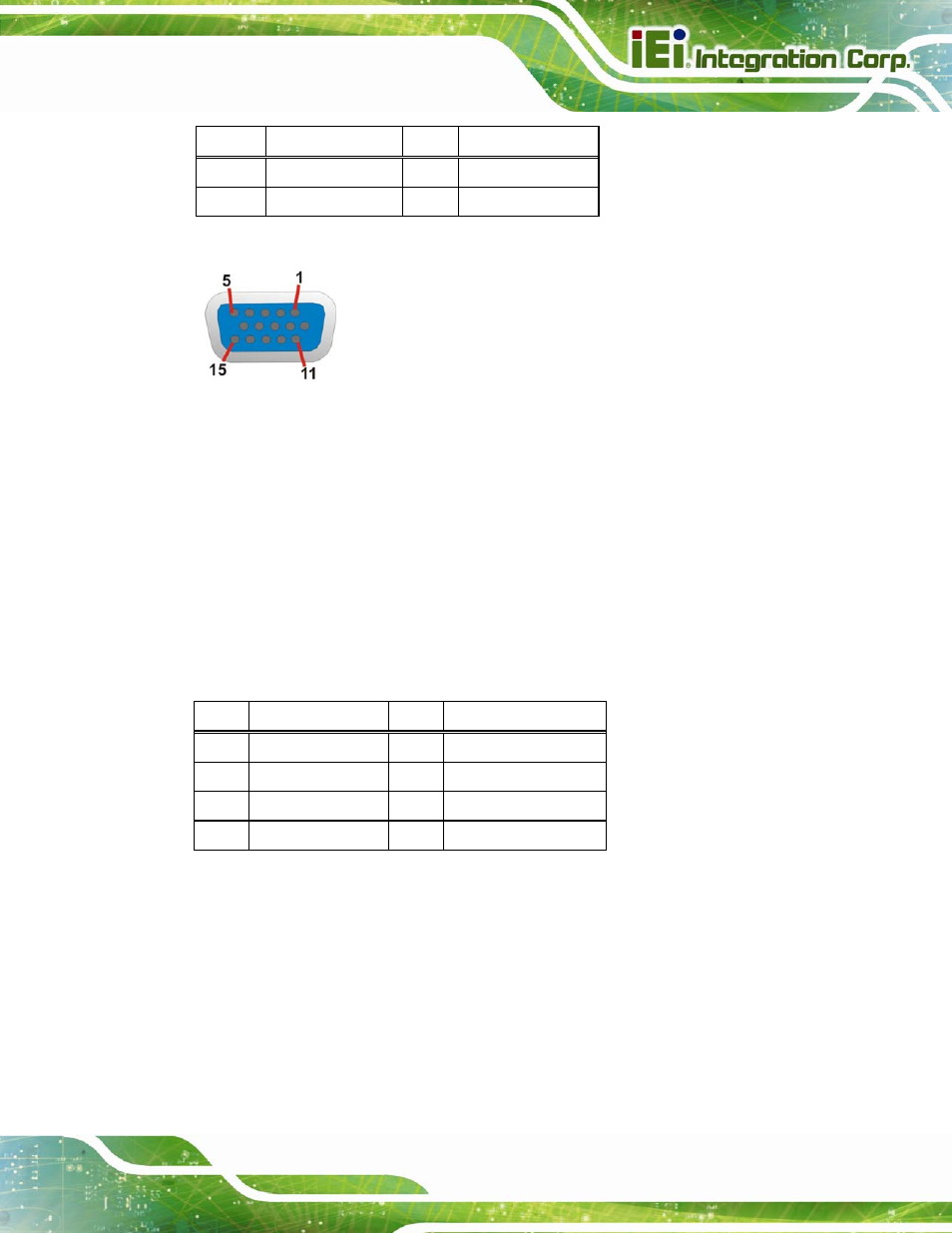

Figure 3-37: VGA Connector
3.3.5 USB 2.0 Connectors
CN Label: CNUSB1
CN Type: USB 2.0
CN Location: See Figure 3-34
CN Pinouts: See Table 3-35
Each USB 2.0 connector can be connected to a USB 2.0 device.
Pin Description Pin Description
1 VCC 5 VCC
2 USB_DATA- 6 USB_DATA-
3 USB_DATA+ 7 USB_DATA+
4 GND 8 GND
Table 3-35: USB 2.0 Port Pinouts
