IMBA-C2260-i2 ATX Motherboard

Page 73

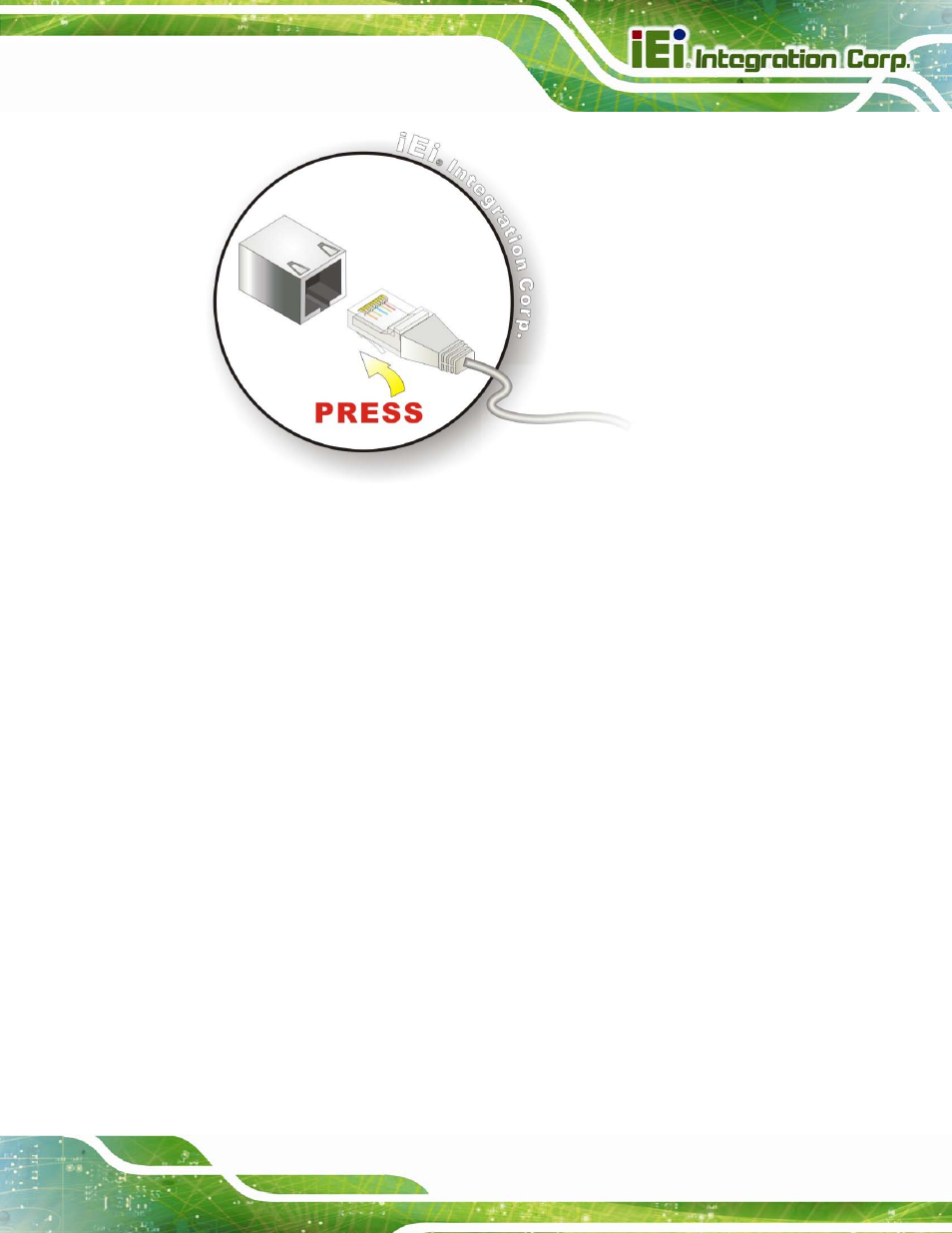

Figure 4-18: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:

4.7.3 PS/2 Keyboard and Mouse Connection

The IMBA-C2260-i2 has a PS/2 connector on the external peripheral interface panel. The

PS/2 connector is used to connect to a keyboard or a mouse to the system. Follow the

steps below to connect a keyboard or a mouse to the IMBA-C2260-i2.

Step 1:

Locate the PS/2 connector. The location of the PS/2 connector is shown in

Chapter 3.

Step 2:

Insert the keyboard/mouse connector.

Insert a PS/2 keyboard or mouse

connector into the PS/2 connector on the external peripheral interface connector.

See Figure 4-19.
