IMBA-C2260-i2 ATX Motherboard
Page 50

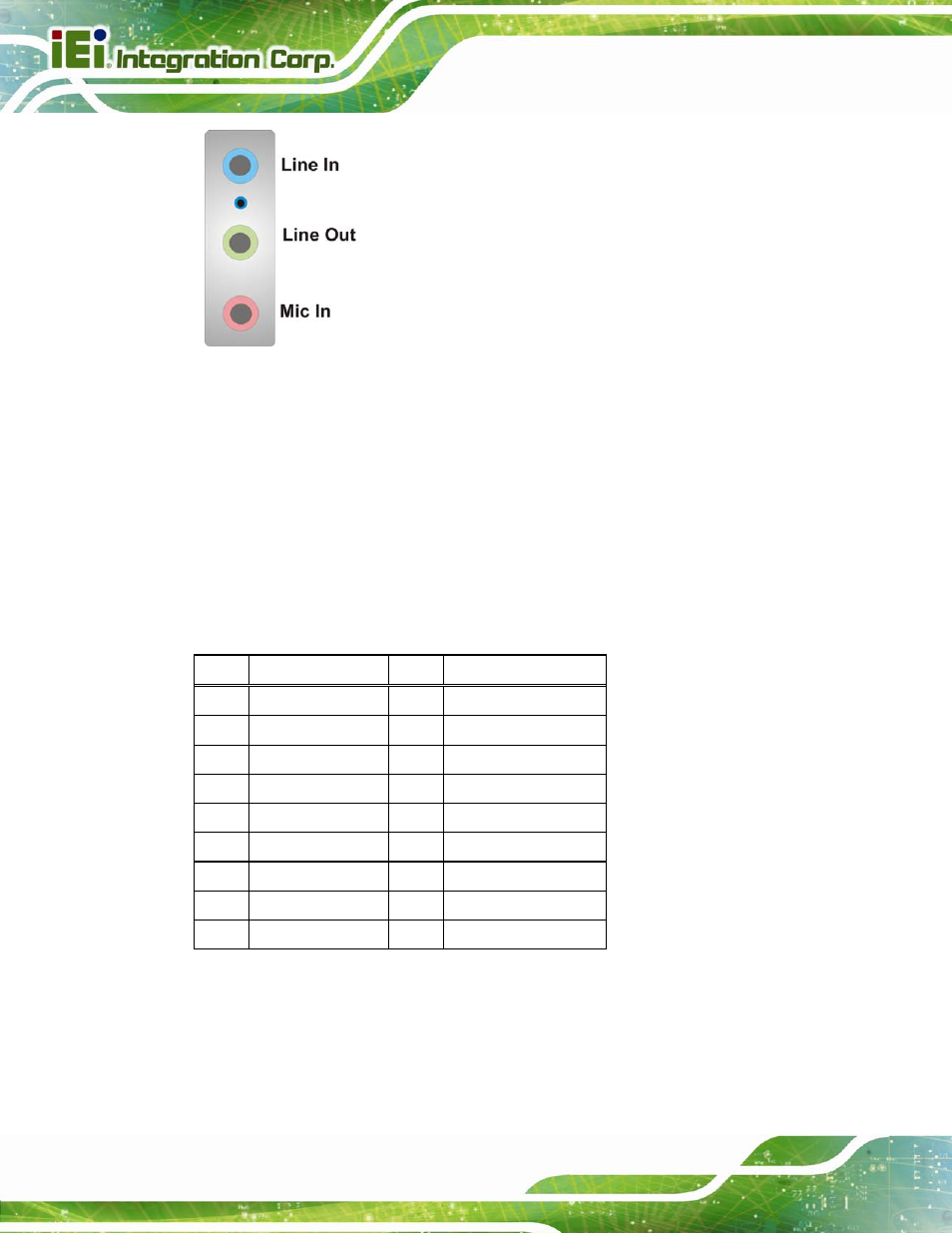

Figure 3-35: Audio Connector
3.3.2 Ethernet and USB 3.0 Connectors
CN Label: LAN1_USB1, LAN1_USB2
CN Type: RJ-45, USB 3.0
CN Location: See Figure 3-34
CN Pinouts: See Table 3-29 and Table 3-30
There are four external USB 3.0 connectors on the IMBA-C2260-i2.
Pin Description Pin Description
1 VCC 10 VCC
2 USB_DATA- 11 USB_DATA-
3 USB_DATA+ 12 USB_ DATA+
4 GND 13 GND
5 USB3_RX- 14 USB3_RX-
6 USB3_RX+ 15 USB3_ RX+
7 GND 16 GND
8 USB3_TX- 17 USB3_TX-
9 USB3_TX+ 18 USB3_TX+
Table 3-29: USB 3.0 Port Pinouts
Each LAN connector connects to a local network
