KINO-CVR-D25502/N26002

P a g e 53

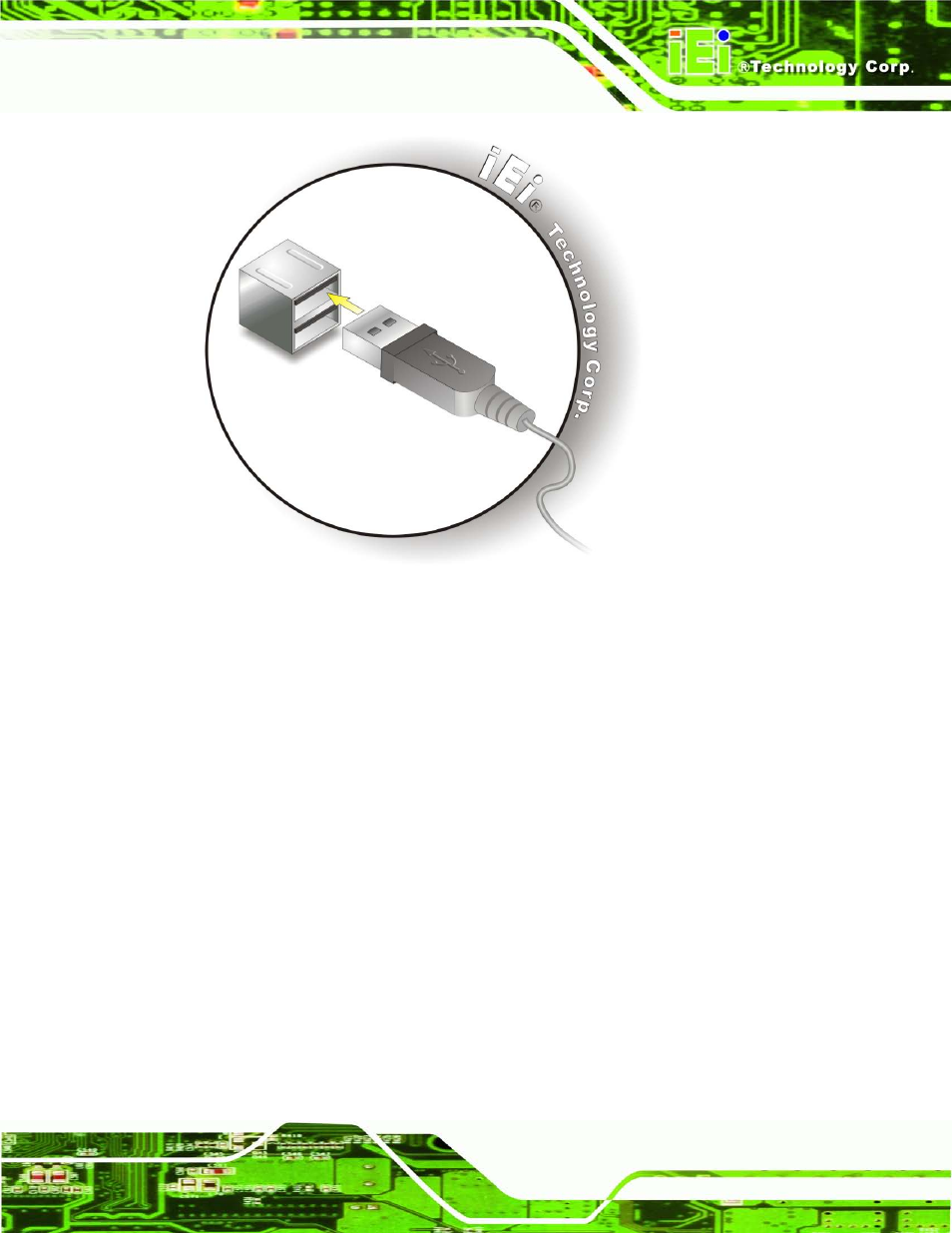

Figure 4-9: USB Connector

4.6.6 VGA Mo n ito r Co n n e c tio n

The KINO-CVR-D25502/N26002 has a single female DB-15 connector on the external

peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor.

To connect a monitor to the KINO-CVR-D25502/N26002, please follow the instructions

below.

S te p 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

S te p 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

S te p 3:

Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

KINO-CVR-D25502/N26002. See Figure 4-10.
