KINO-CVR-D25502/N26002
P a g e 28
The PCIe mini card slot enables a PCIe mini card expansion module to be connected to
the board. Cards supported include wireless LAN (WLAN) cards and mSATA SSD cards.

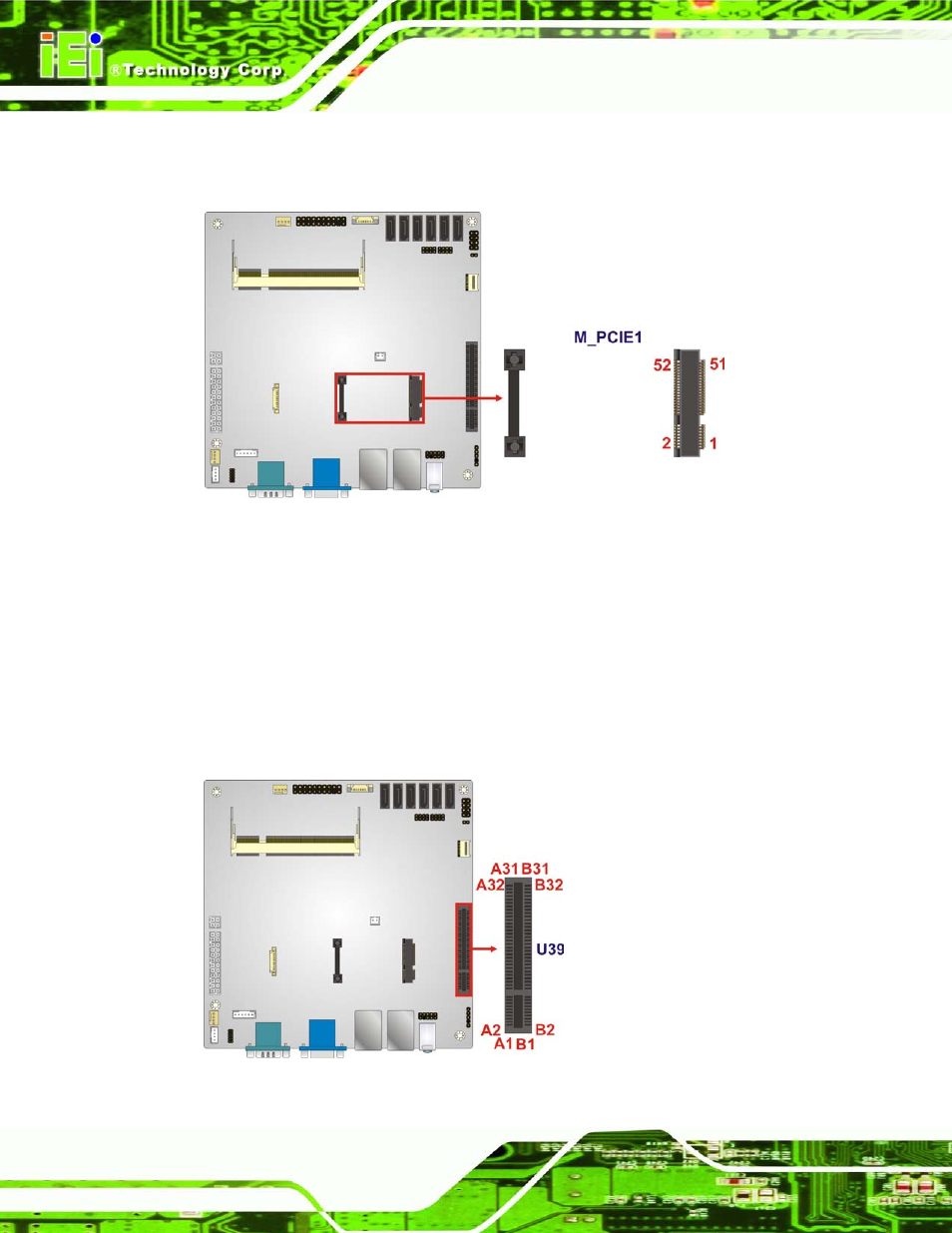

Figure 3-14: PCIe Mini Card Slot Location
3.2.14 P CIe x4 S lo t
CN La b e l: U39
CN Typ e : PCIe x4 slot
CN Lo c a tio n : See Figure 3-15
The PCIe x4 slot with PCIe x1 signal is for PCIe x1 expansion cards.
Figure 3-15: PCIe x4 Slot Location
