KINO-CVR-D25502/N26002

P a g e 23

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

PLT_RST#

2

FWHPCLK

3

GND

4

LAD3

5

LAD2

6

LAD1

7

LAD0

8

LF_FWH4

9

VCC3

Table 3-8: Debug Port Connector Pinouts

3.2.8 Dig ita l I/O Co n n e c to r

CN La b e l:

DIO1

CN Typ e :

10-pin header

CN Lo c a tio n :

See Figure 3-9

CN P in o u ts :

See Table 3-9

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

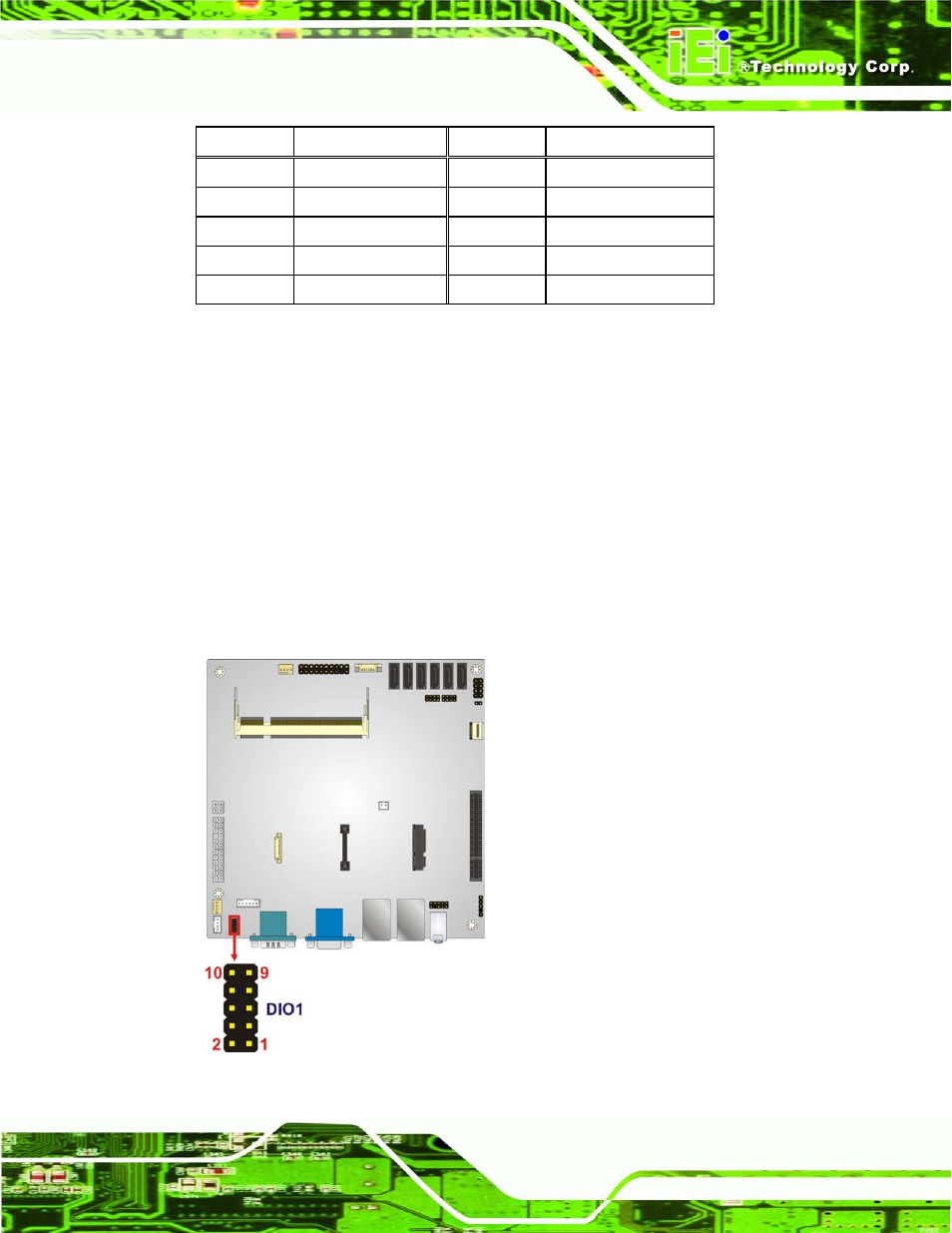

Figure 3-9: Digital I/O Connector Location
