KINO-CVR-D25502/N26002
P a g e 21

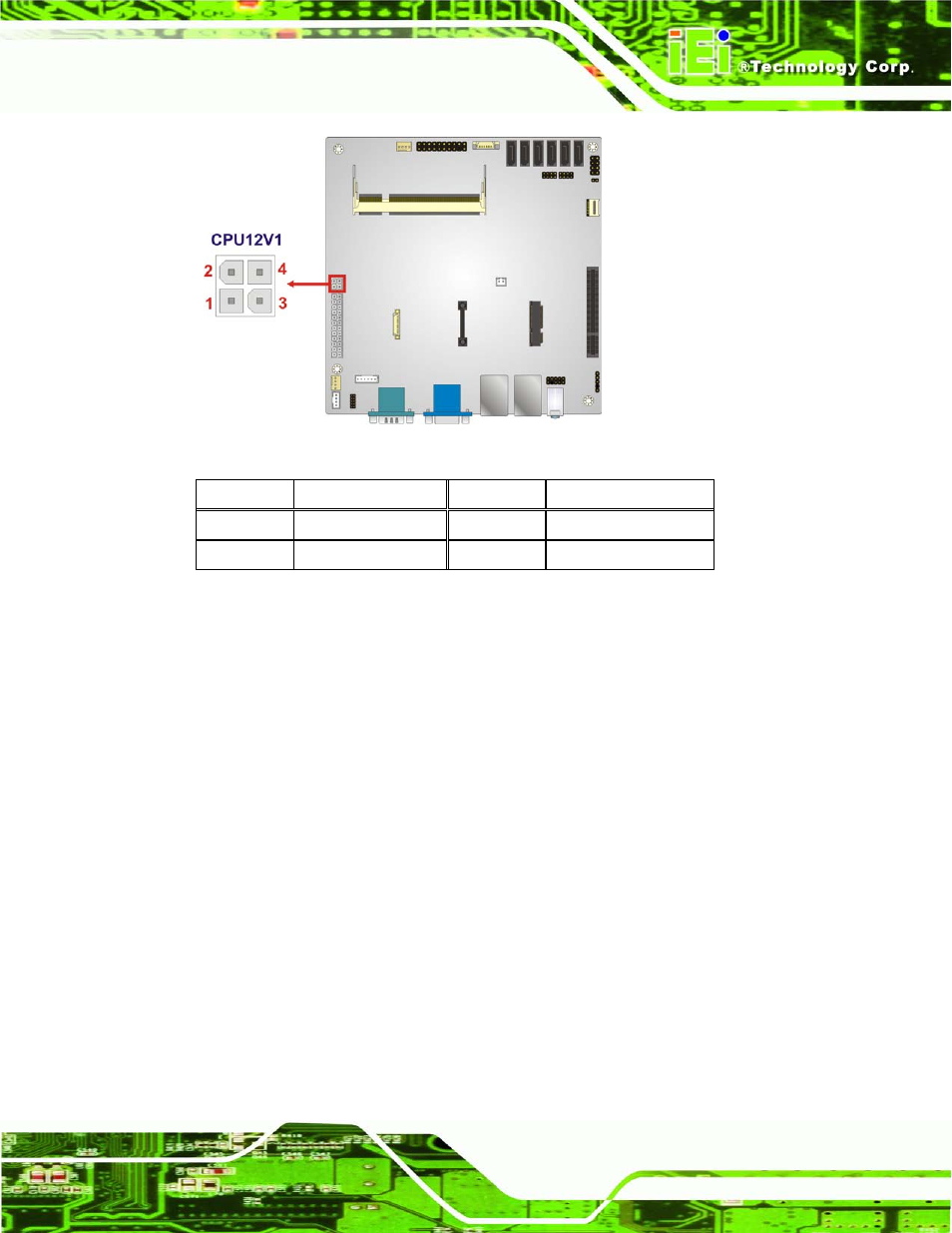

Figure 3-6: CPU Power Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 GND
3 12V 4 12V
Table 3-7: CPU Power Connector Pinouts
3.2.6 DDR3 S O-DIMM S lo t
CN La b e l: DIMM1
CN Typ e : DDR3 SO-DIMM slot
CN Lo c a tio n : See Figure 3-7
The DDR3 SO-DIMM slot is for DDR3 SO-DIMM memory module.
