KINO-CVR-D25502/N26002
P a g e 52

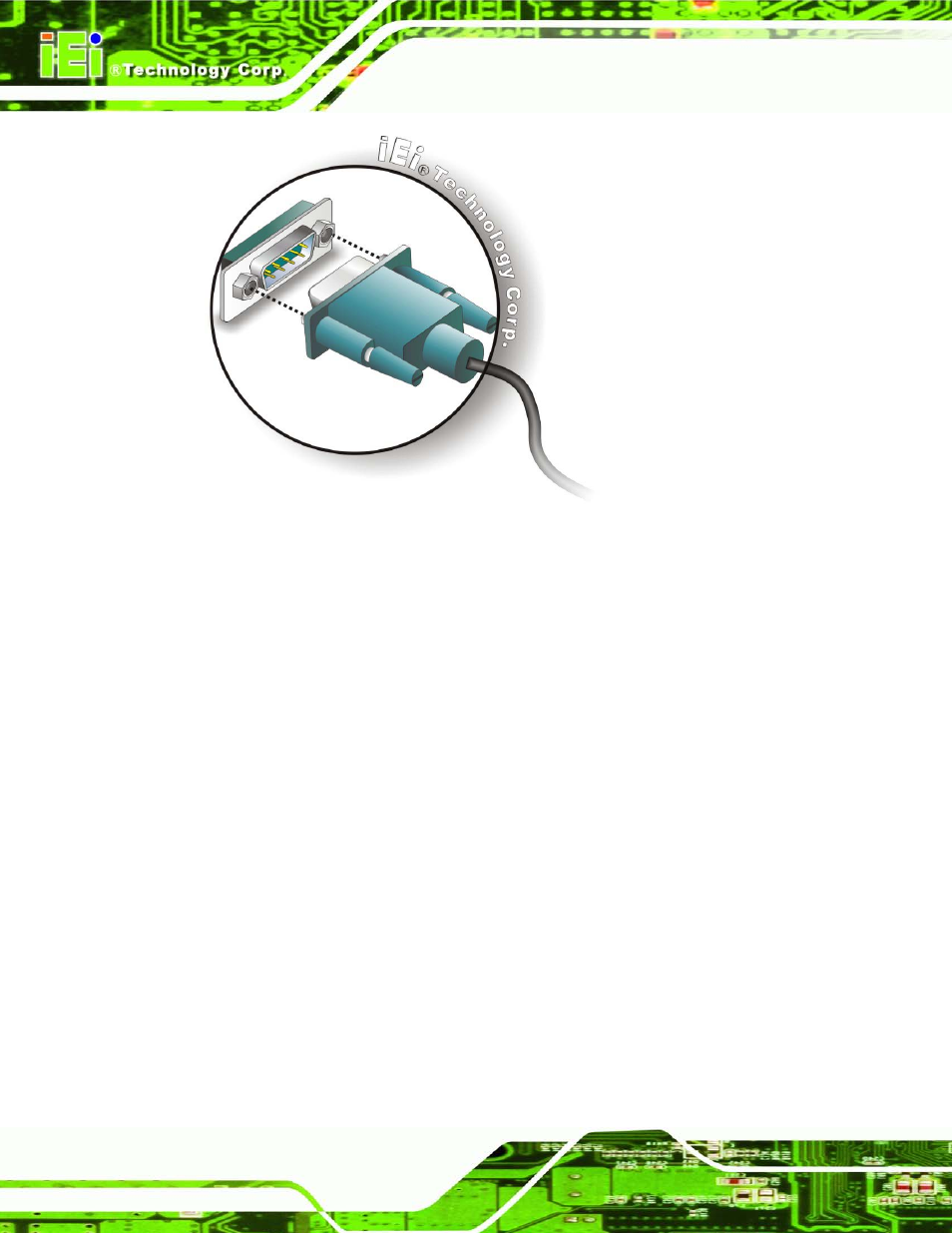

Figure 4-8: Serial Device Connector
S te p 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector
4.6.5 US B Co n n e c tio n
The external USB Series "A" receptacle connectors provide easier and quicker access to
external USB devices. Follow the steps below to connect USB devices to the
KINO-CVR-D25502/N26002.
S te p 1: Locate the USB Series "A" receptacle connectors. The location of the USB
Series "A" receptacle connectors are shown in Chapter 3.
S te p 2: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
Figure 4-9.
