KINO-CVR-D25502/N26002
P a g e 44
o When working with the KINO-CVR-D25502/N26002, make sure that it is
disconnected from all power supplies and that no electricity is being fed
into the system.
Before and during the installation of the KINO-CVR-D25502/N26002 DO NOT:
 Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
 Use the product before verifying all the cables and power connectors are
properly connected.
 Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
4.3 S O-DIMM In s ta lla tio n
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-1.

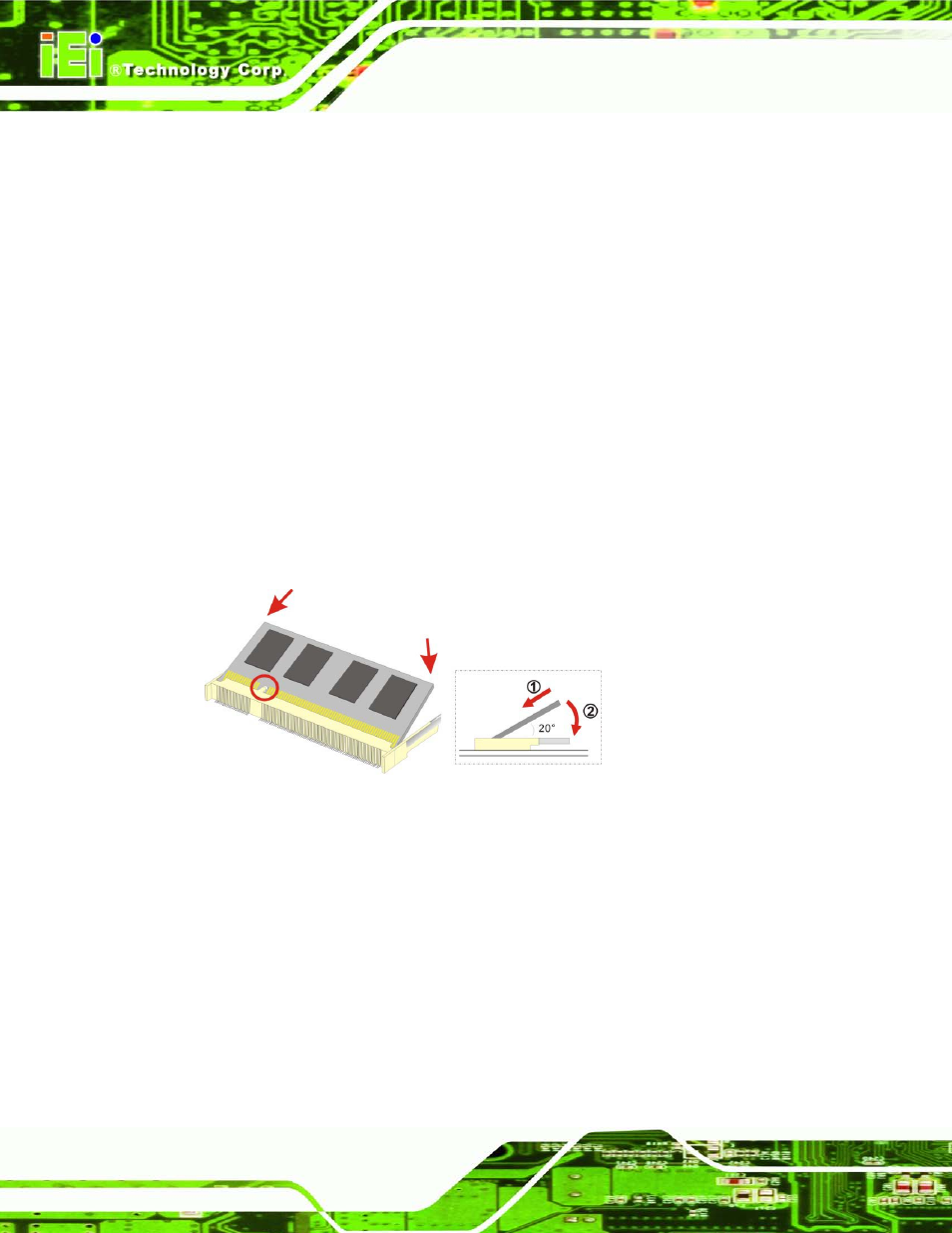

Figure 4-1: SO-DIMM Installation
S te p 1: Locate the SO-DIMM socket. Place the KINO-CVR-D25502/N26002 on an
anti-static pad with the solder side facing up.
S te p 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket.
S te p 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 4-1)
