KINO-CVR-D25502/N26002

P a g e 40

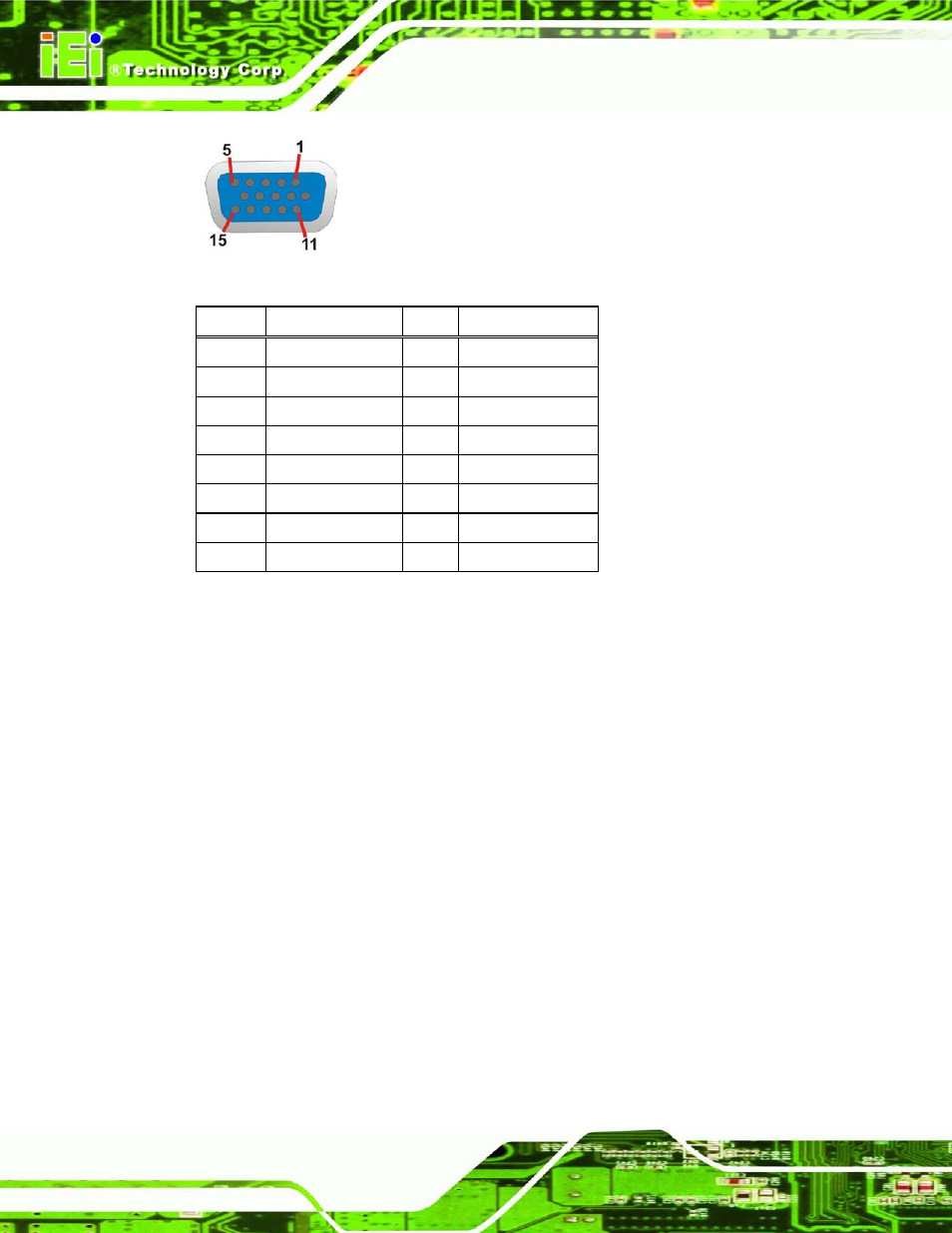

Figure 3-26: VGA Connector

PIN

DESCRIPTION

PIN

DESCRIPTION

1

Red

2

Green

3

Blue

4

NC

5

GND

6

GND

7

GND

8

GND

9

VGAVCC

10

HOTPLUG

11

NC

12

DDCDAT

13

HSYNC

14

VSYNC

15

DDCCLK

Table 3-23: VGA Connector Pinouts
