KINO-CVR-D25502/N26002

P a g e 6

1.6 Da ta Flo w

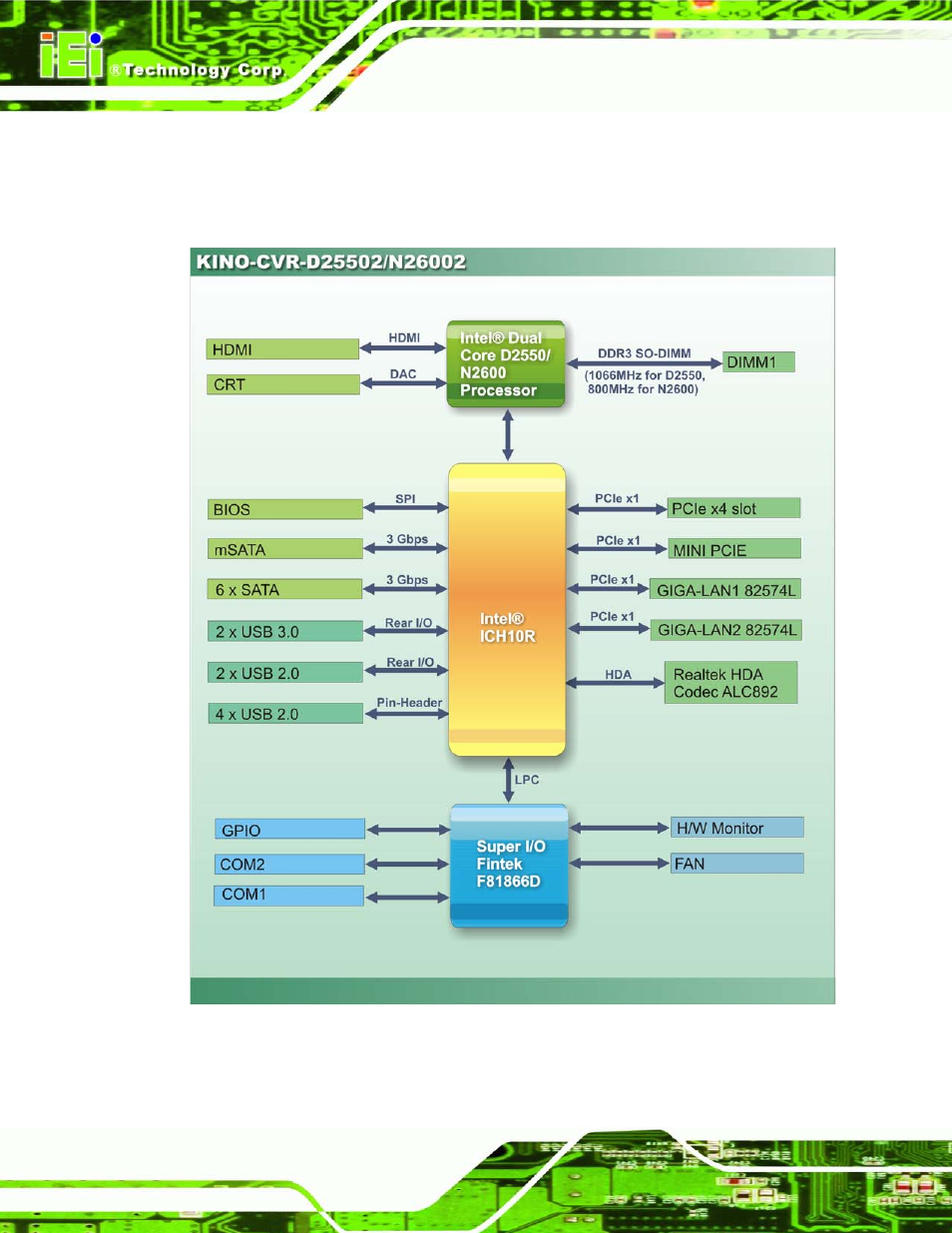

Figure 1-4 shows the data flow between the system chipset, the CPU and other

components installed on the motherboard.

Figure 1-4: Data Flow Diagram
