KINO-CVR-D25502/N26002
P a g e 24
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 VCC5
3 DGPO3 4 DGPO2
5 DGPO1 6 DGPO0
7 DGPI3 8 DGPI2
9 DGPI1 10 DGPI0
Table 3-9: Digital I/O Connector Pinouts
3.2.9 Fro n t P a n e l Au d io Co n n e c to r
CN La b e l: FRONT_P ANEL2
CN Typ e : 10-pin header
CN Lo c a tio n : See Figure 3-10
CN P in o u ts : See Table 3-10
The front panel audio connector connects to speakers, a microphone and an audio input.

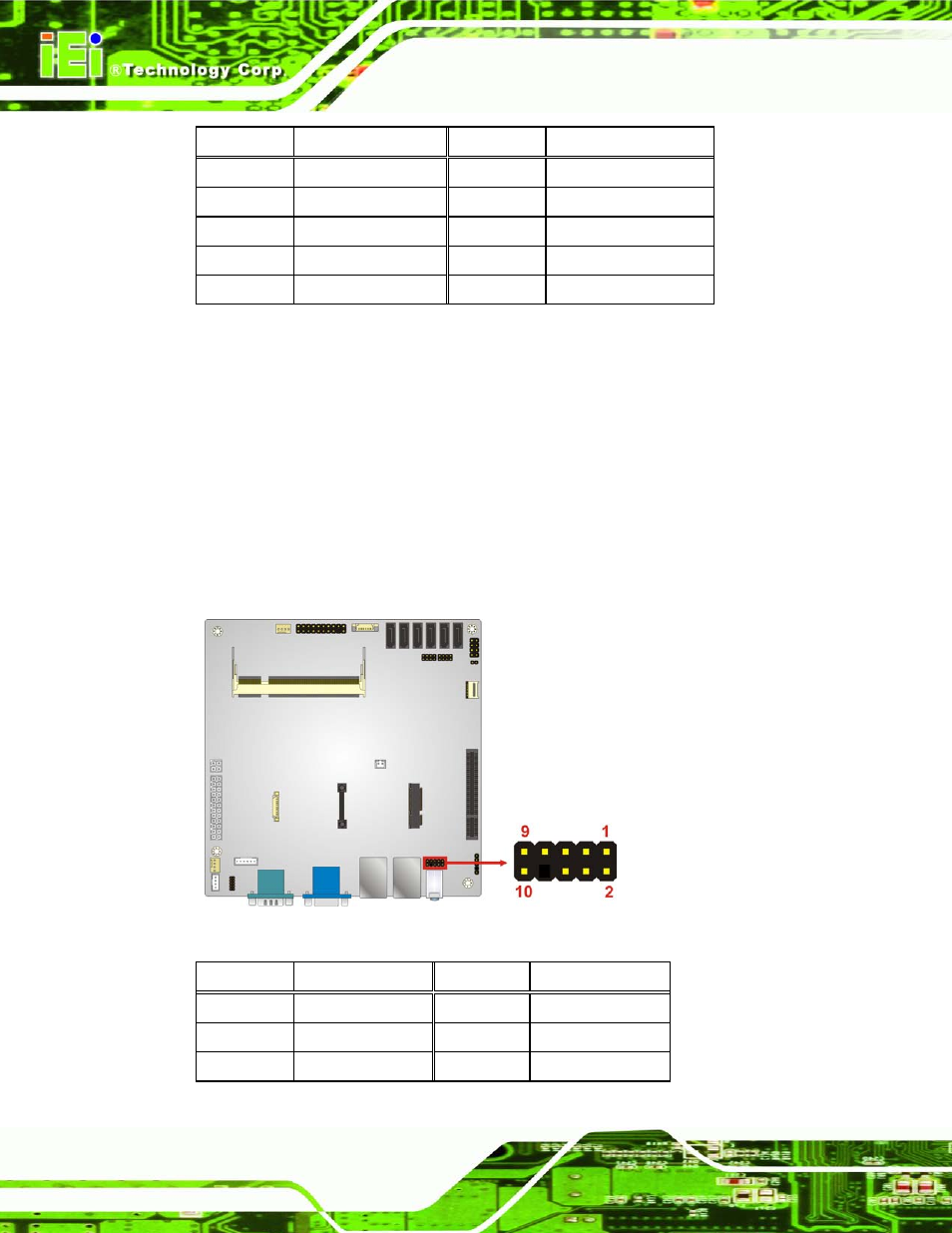

Figure 3-10: Front Panel Audio Connector Location
Pin Description Pin Description
1 LMIC2-L 2 Analog_GND
3 LMIC2-R 4 PRESENCE#
5 LLINE2-R 6 MIC2-JD
