KINO-CVR-D25502/N26002
P a g e 31

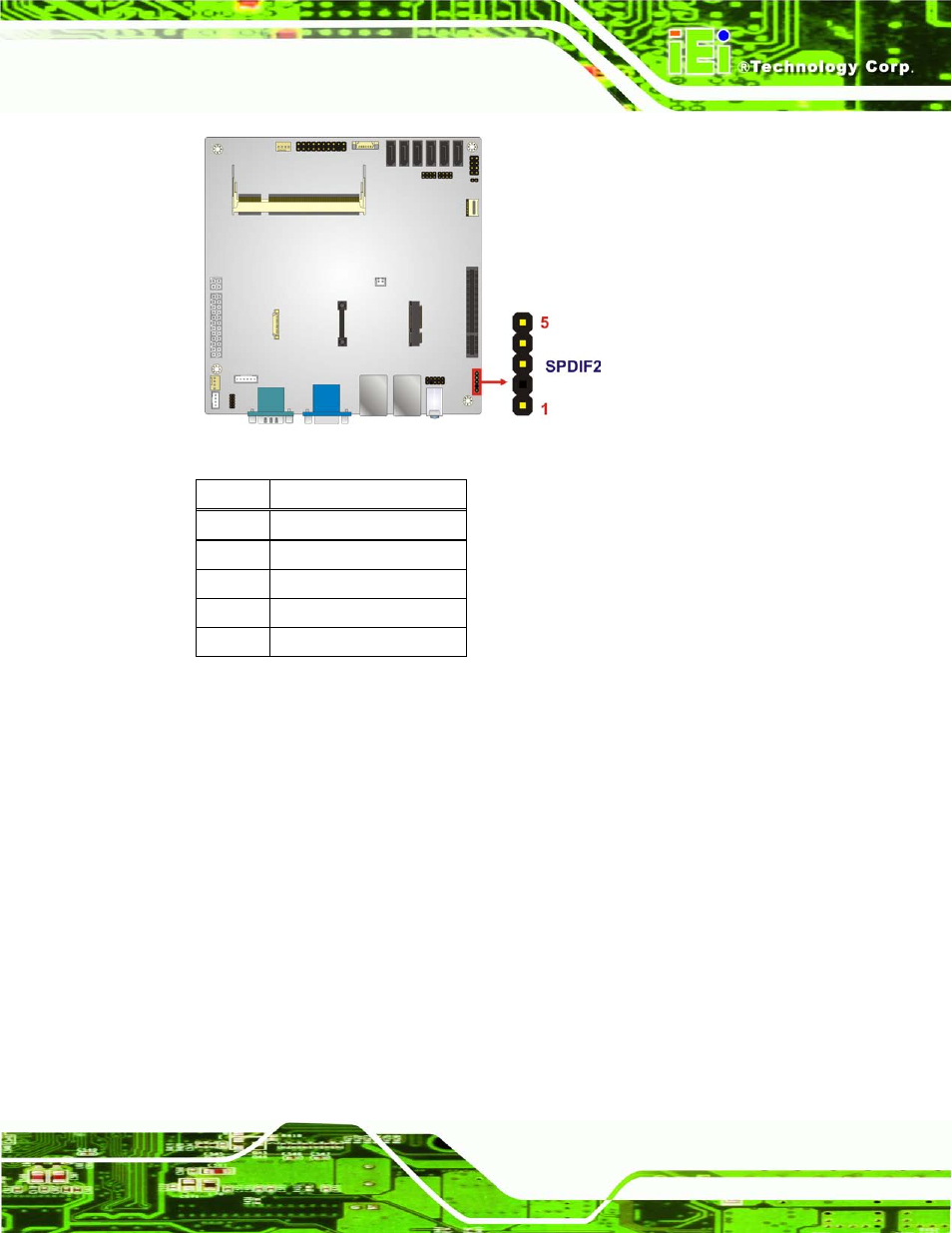

Figure 3-18: SPDIF Connector Location
PIN DESCRIPTION
1 VCC5
2 NC
3 SPDIFOUT
4 GND
5 NC
Table 3-15: SPDIF Connector Pinouts
3.2.18 S ys te m Fa n Co n n e c to r
CN La b e l: FAN2
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-19
CN P in o u ts : See Table 3-16
The fan connector connects to a system cooling fan.
