KINO-CVR-D25502/N26002
P a g e 34
CN Lo c a tio n : See Figure 3-21
CN P in o u ts : See Table 3-18
The USB connectors connect to USB devices. Each pin header provides two USB ports.

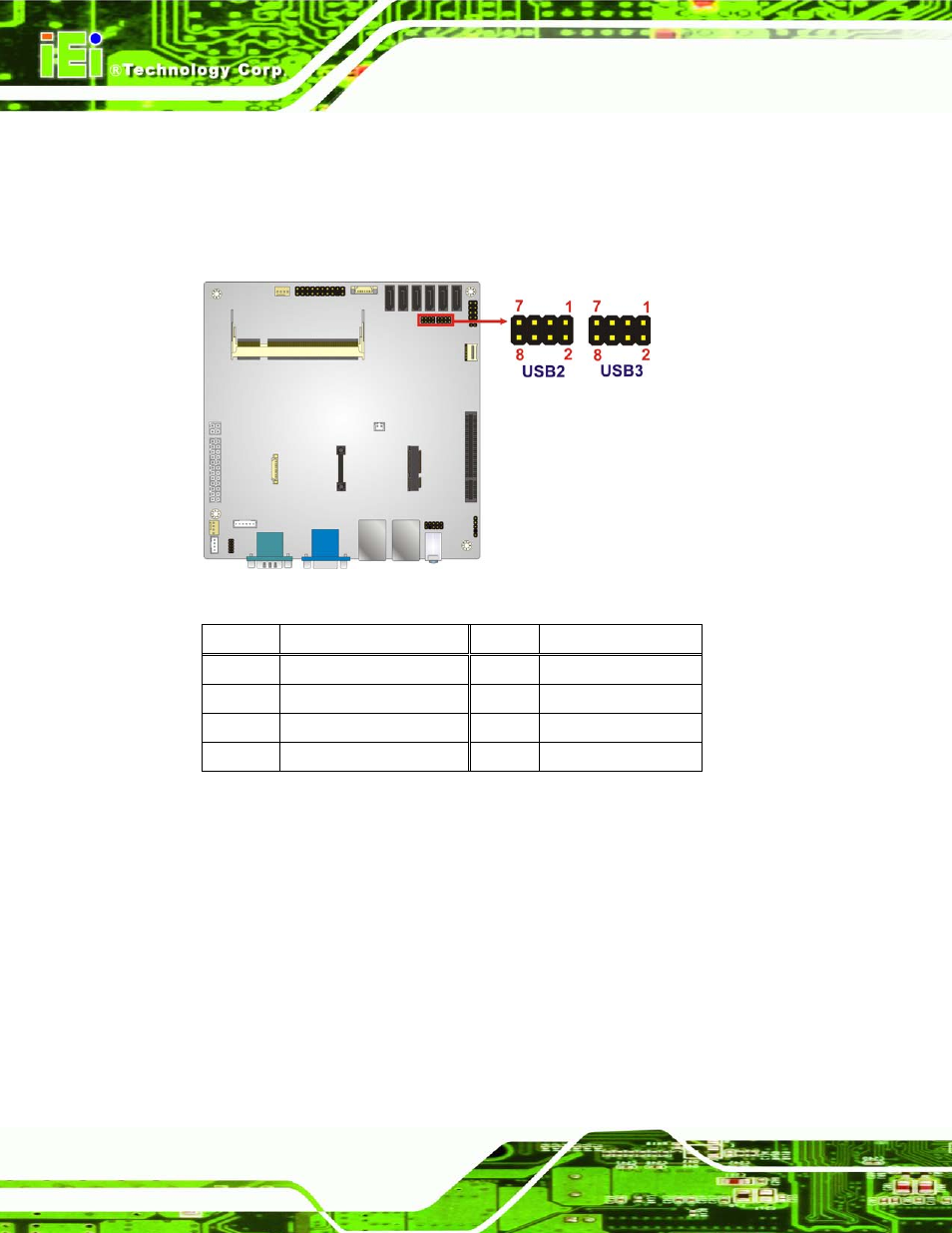

Figure 3-21: USB Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 DATA2/4N 4 DATA3/5P
5 DATA2/4P 6 DATA3/5N
7 GND 8 VCC
Table 3-18: USB Connector Pinouts
3.3 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c to r P a n e l
Figure 3-22 shows the KINO-CVR-D25502/N26002 external peripheral interface
connector (EPIC) panel. The EPIC panel consists of the following:
 2 x Audio jacks
 2 x Ethernet connectors
 1 x HDMI connector
 2 x RS-232 serial port connectors
 2 x USB 2.0 connectors
