KINO-CVR-D25502/N26002

P a g e 14

3.1 P e rip h e ra l In te rfa c e Co n n e c to rs

This chapter details all the jumpers and connectors.

3.1.1 KINO-CVR-D25502/N26002 La yo u t

The figures below show all the connectors and jumpers.

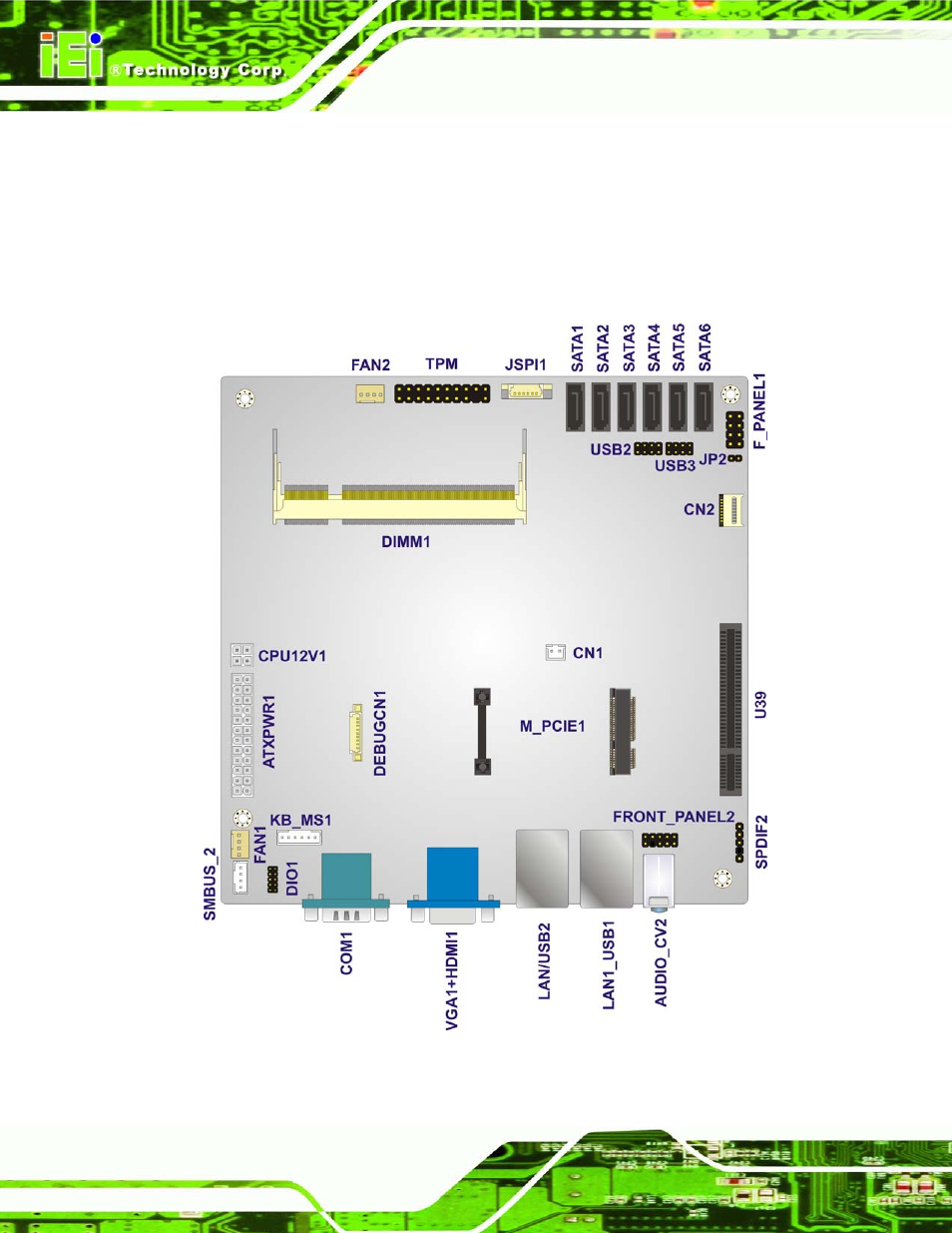

Figure 3-1: Connector and Jumper Locations
