KINO-CVR-D25502/N26002

P a g e 47

S te p 2:

Insert the cable connector. Press the clip on the connector at the end of the

SATA cable and insert the cable connector into the on-board SATA drive

connector. See Figure 4-4.

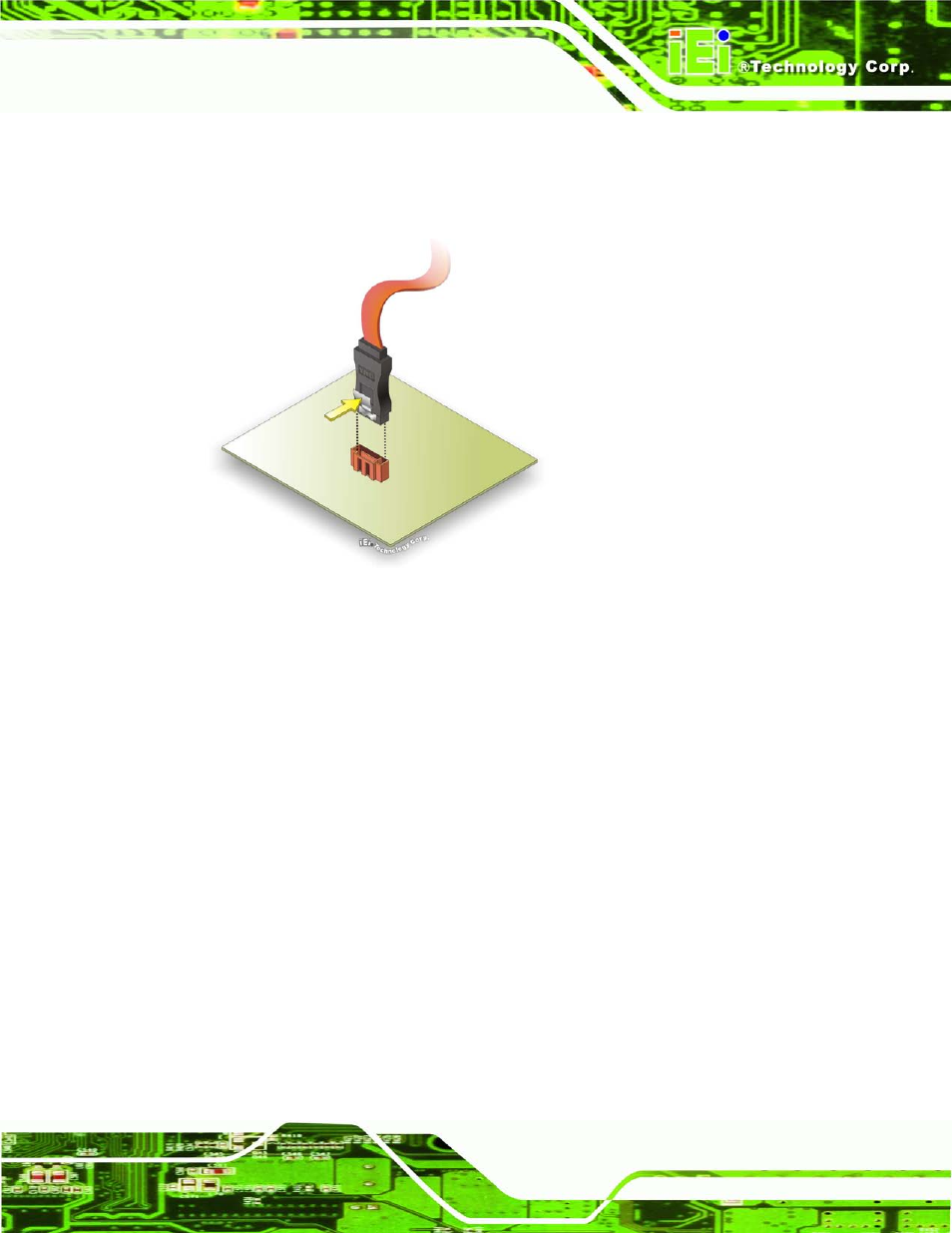

Figure 4-4: SATA Drive Cable Connection

S te p 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 4-5.

S te p 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See Figure 4-5.
