KINO-CVR-D25502/N26002
P a g e 35
 2 x USB 3.0 connectors
 1 x VGA connector

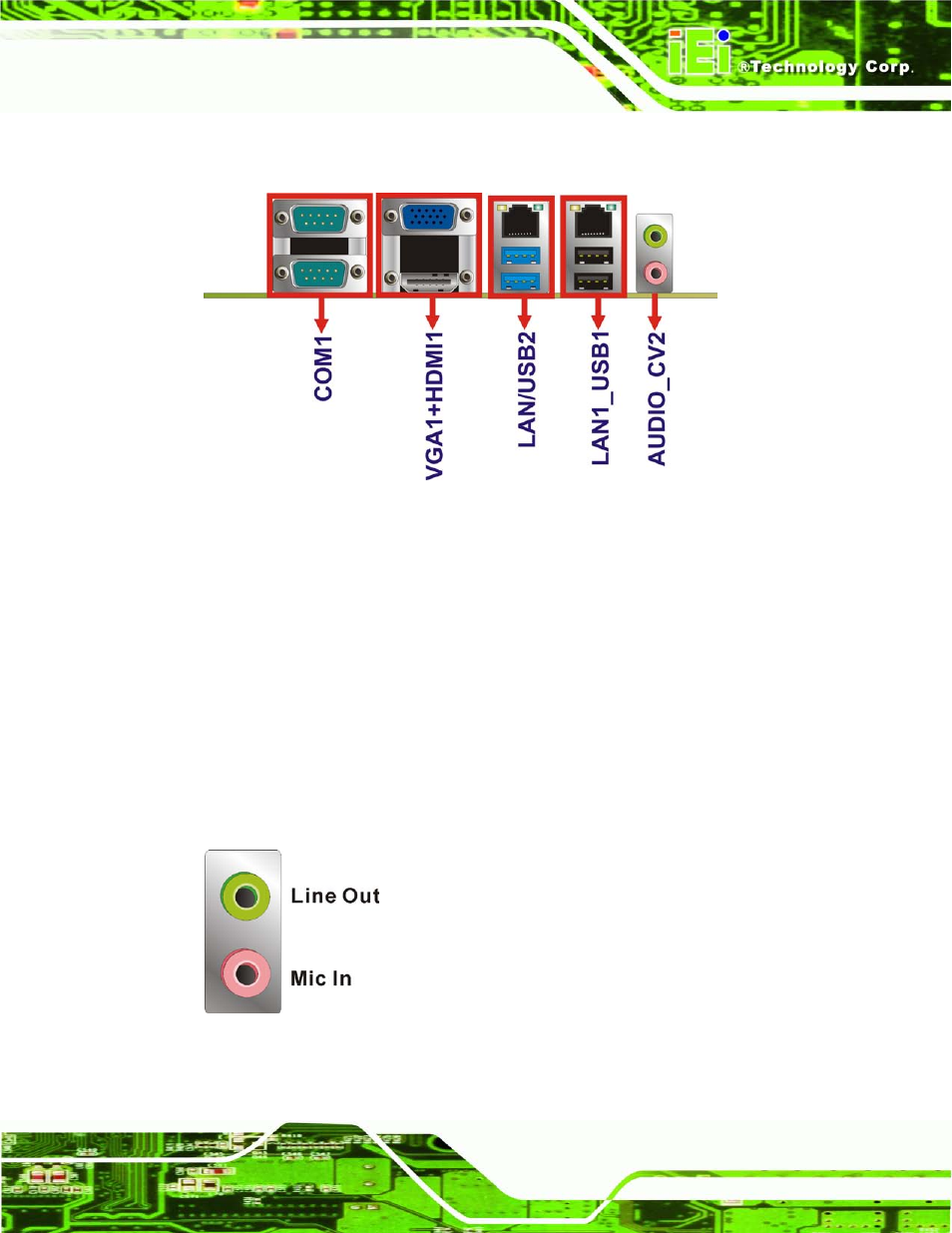

Figure 3-22: KINO-CVR-D25502/N26002 External Peripheral Interface Connector
3.3.1 Au d io Co n n e c to r
CN La b e l: AUDIO_CV2
CN Typ e : Audio jack
CN Lo c a tio n : See Figure 3-22
The audio jacks connect to external audio devices.
 Line-out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
 Microphone (Pink): Connects a microphone.
Figure 3-23: Audio Connector
