KINO-CVR-D25502/N26002
P a g e 39

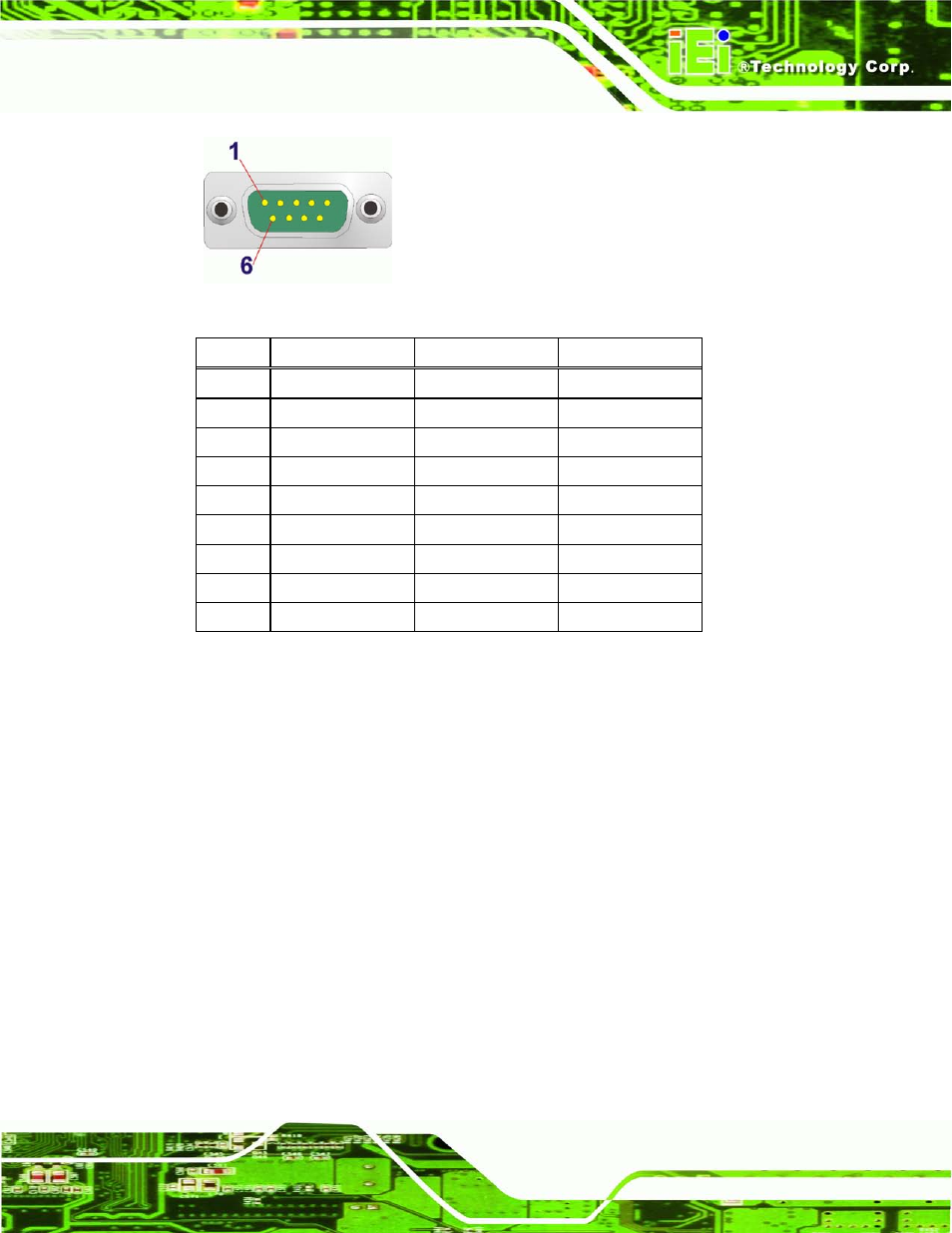

Figure 3-25: RS-232 Serial Port Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NDCD1 2 NRX1
3 NTX1 4 NDTR1
5 GND 6 NDSR1
7 NRTS1 8 NCTS1
9 NRI1 10 NDCD2
11 NRX2 12 NTX2
13 NDTR2 14 GND
15 NDSR2 16 NRTS2
17 NCTS2 18 NRI2
Table 3-22: RS-232 Serial Port Connector Pinouts
3.3.5 VGA Co n n e c to r
CN La b e l: VGA1
CN Typ e : 15-pin female
CN Lo c a tio n : See Figure 3-22
CN P in o u ts : See Figure 3-26 and Table 3-23
The VGA port connects to a monitor that accepts a standard VGA input.
