KINO-CVR-D25502/N26002
P a g e 49
4.6.1 Au d io Co n n e c tio n
The audio jacks on the external audio connector enable the KINO-CVR-D25502/N26002
to be connected to a stereo sound setup. To install the audio devices, follow the steps
below.
S te p 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
S te p 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
 Line Out port (Lime): Connects to a headphone or a speaker.
 Microphone (Pink): Connects to a microphone.

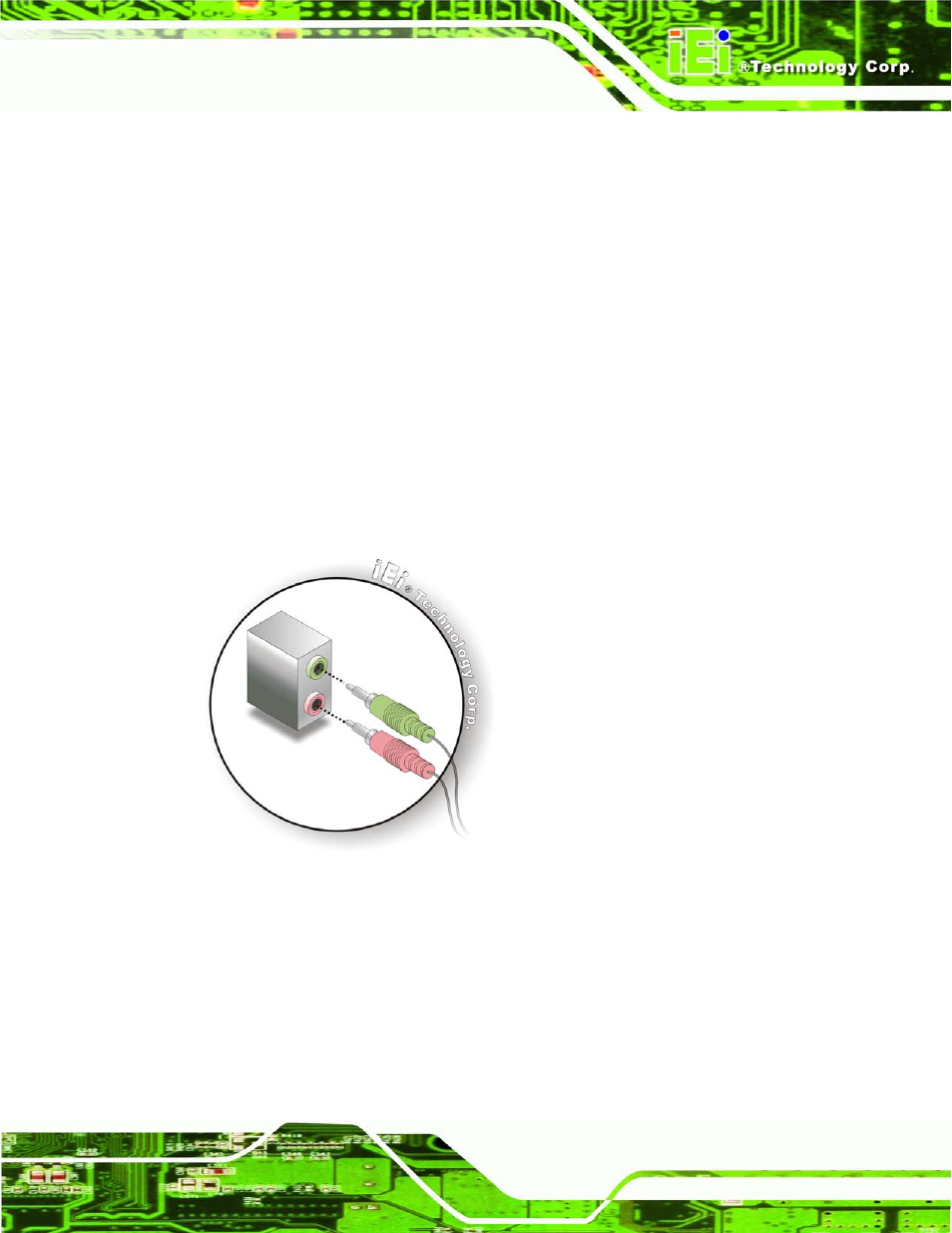

Figure 4-6: Audio Connector
S te p 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.6.2 HDMI Dis p la y De vic e Co n n e c tio n
The KINO-CVR-D25502/N26002 has one female HDMI connector on the external
peripheral interface panel. The HDMI connectors are connected to digital display devices.
