KINO-CVR-D25502/N26002

P a g e 18

CN P in o u ts :

See Table 3-4

The battery connector is connected to the system battery. The battery provides power to

the system clock to retain the time when power is turned off.

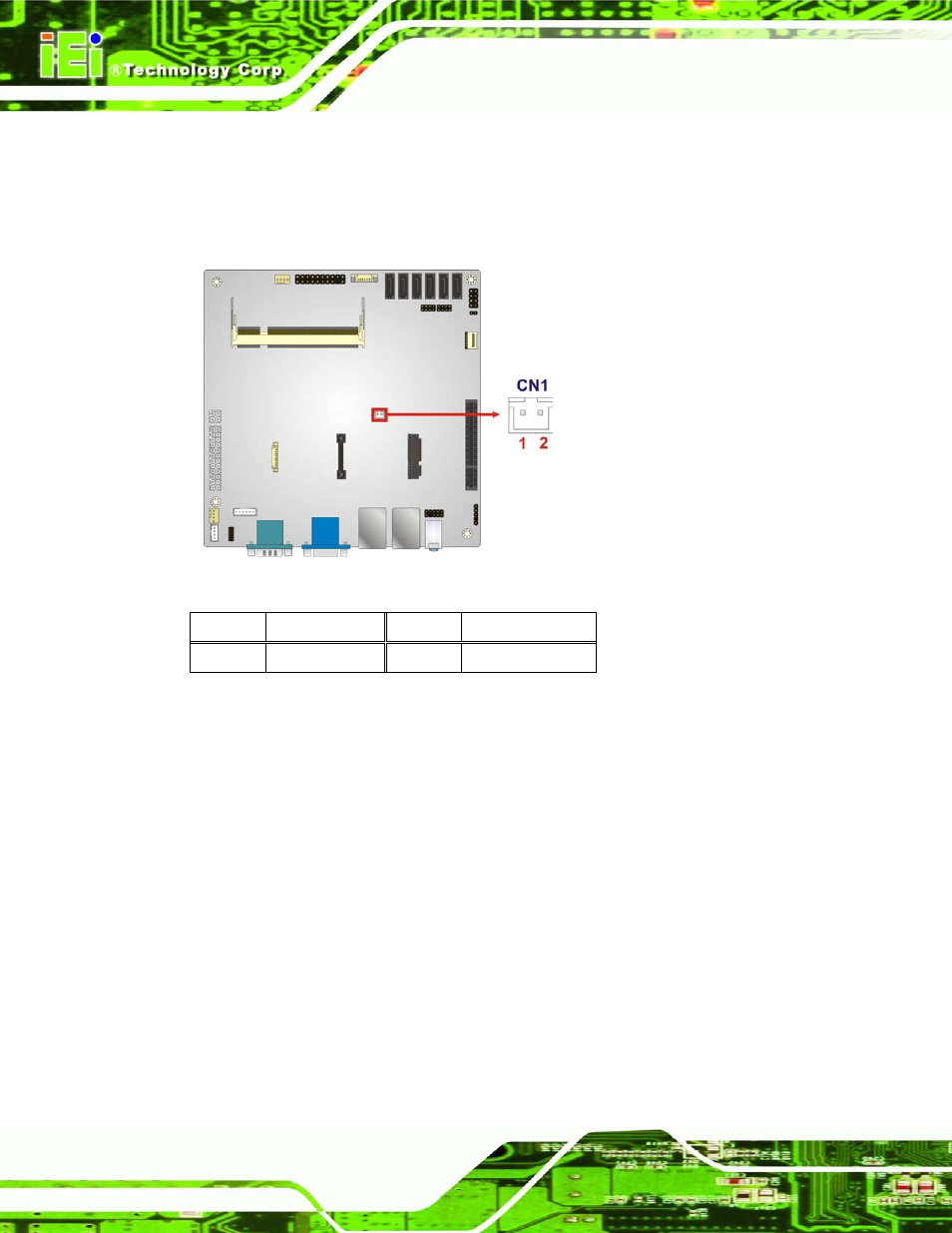

Figure 3-3: Battery Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

BAT

2

GND

Table 3-4: Battery Connector Pinouts

3.2.3 BIOS P ro g ra m m in g Co n n e c to r

CN La b e l:

J S P I1

CN Typ e :

6-pin wafer

CN Lo c a tio n :

See Figure 3-4

CN P in o u ts :

See Table 3-5

The connector is for BIOS programming.
