KINO-CVR-D25502/N26002
P a g e 26
3.2.11 Ke yb o a rd /Mo u s e Co n n e c to r
CN La b e l: KB_MS 1
CN Typ e : 6-pin wafer
CN Lo c a tio n : See Figure 3-12
CN P in o u ts : See Table 3-12
The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a
PS/2 keyboard and mouse.

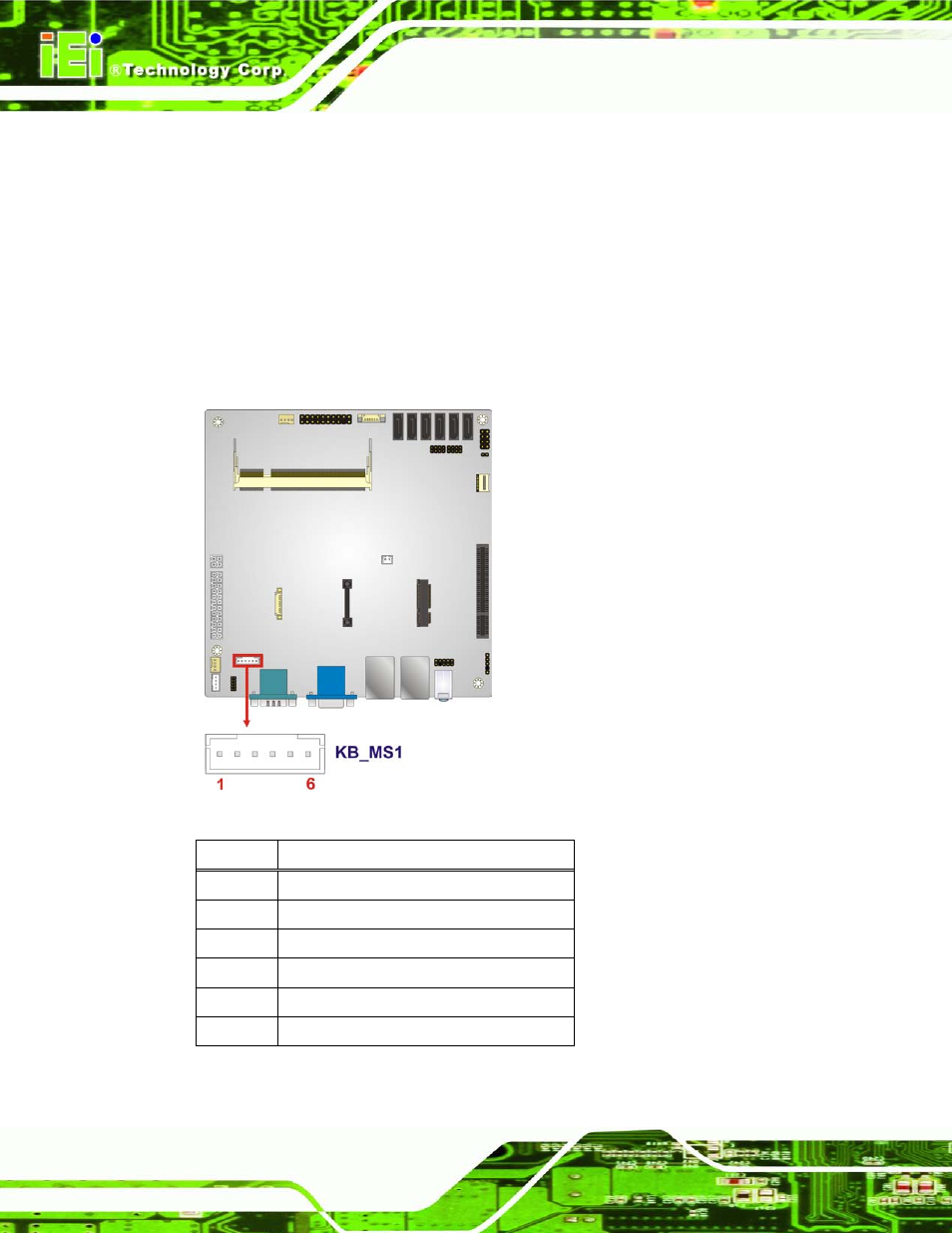

Figure 3-12: Keyboard/Mouse Connector Location
Pin Description
1 VCC5_KBMS
2 MSDATA
3 MSCLK
4 KBDATA
5 KBCLK
6 GND
Table 3-12: Keyboard/Mouse Connector Pinouts
