KINO-CVR-D25502/N26002

P a g e 32

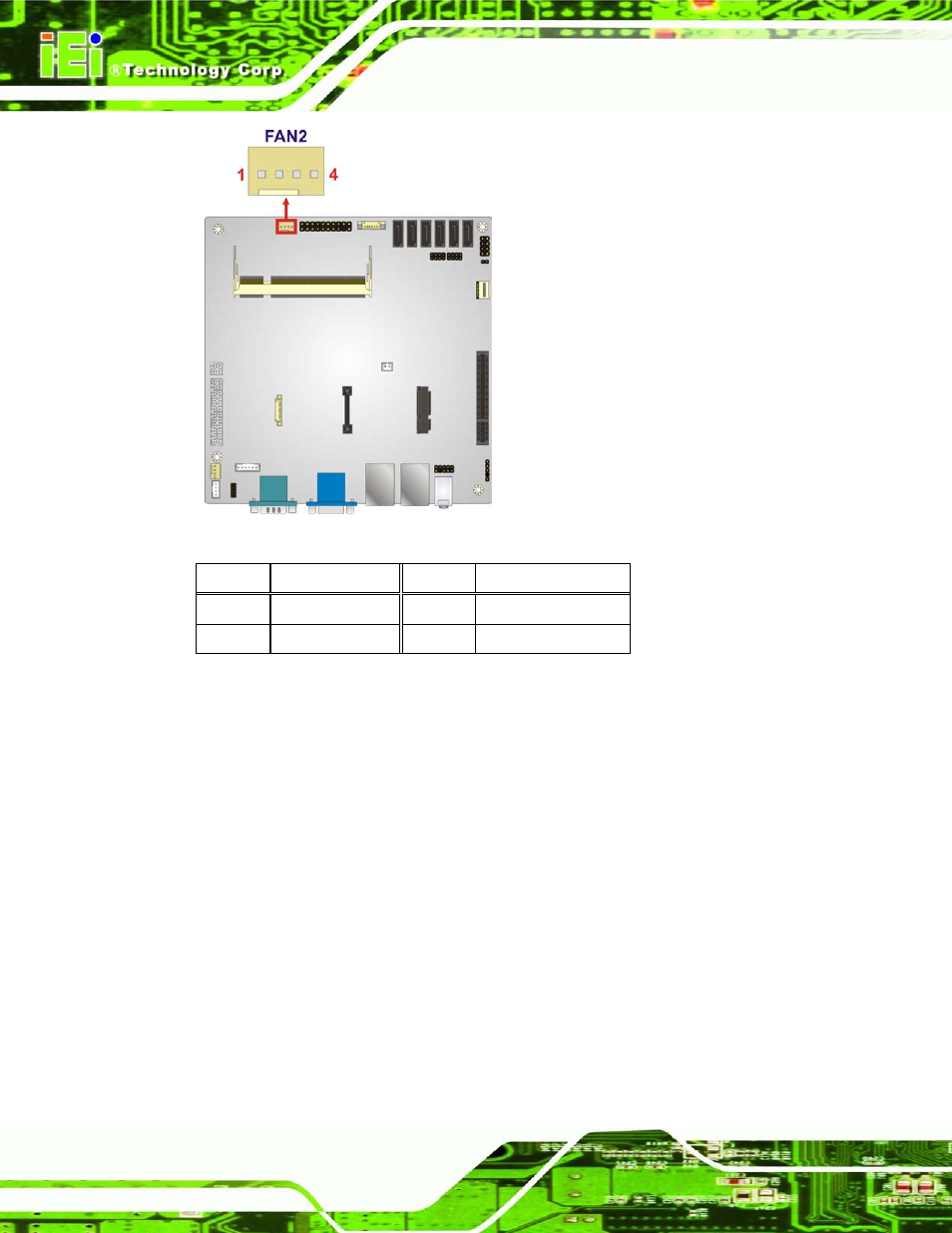

Figure 3-19: System Fan Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

+V12S_FAN

3

FANIN1

4

FANOUT1

Table 3-16: System Fan Connector Pinouts

3.2.19 TP M Co n n e c to r

CN La b e l:

TP M

CN Typ e :

20-pin connector

CN Lo c a tio n :

See Figure 3-20

CN P in o u ts :

See Table 3-17

The Trusted Platform Module (TPM) connector secures the system on bootup.
