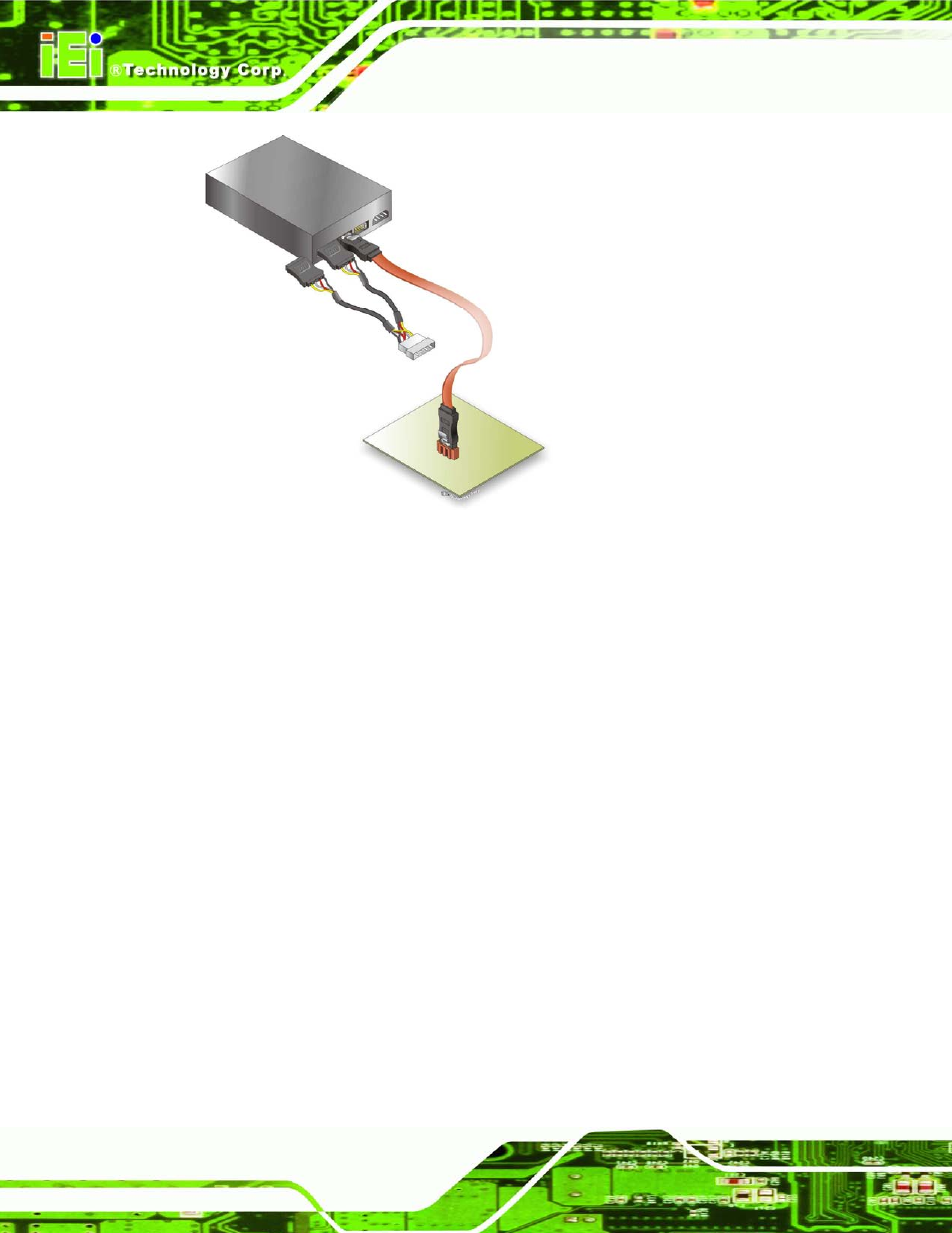

Figure 4-5: SATA Power Drive Connection
4.6 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c tio n
The following external peripheral devices can be connected to the external peripheral
interface connectors.
 Audio devices
 HDMI devices
 RJ-45 Ethernet cable connector
 Serial port devices
 USB devices
 VGA monitor
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding KINO-CVR-D25502/N26002 external peripheral interface
connector making sure the pins are properly aligned.
