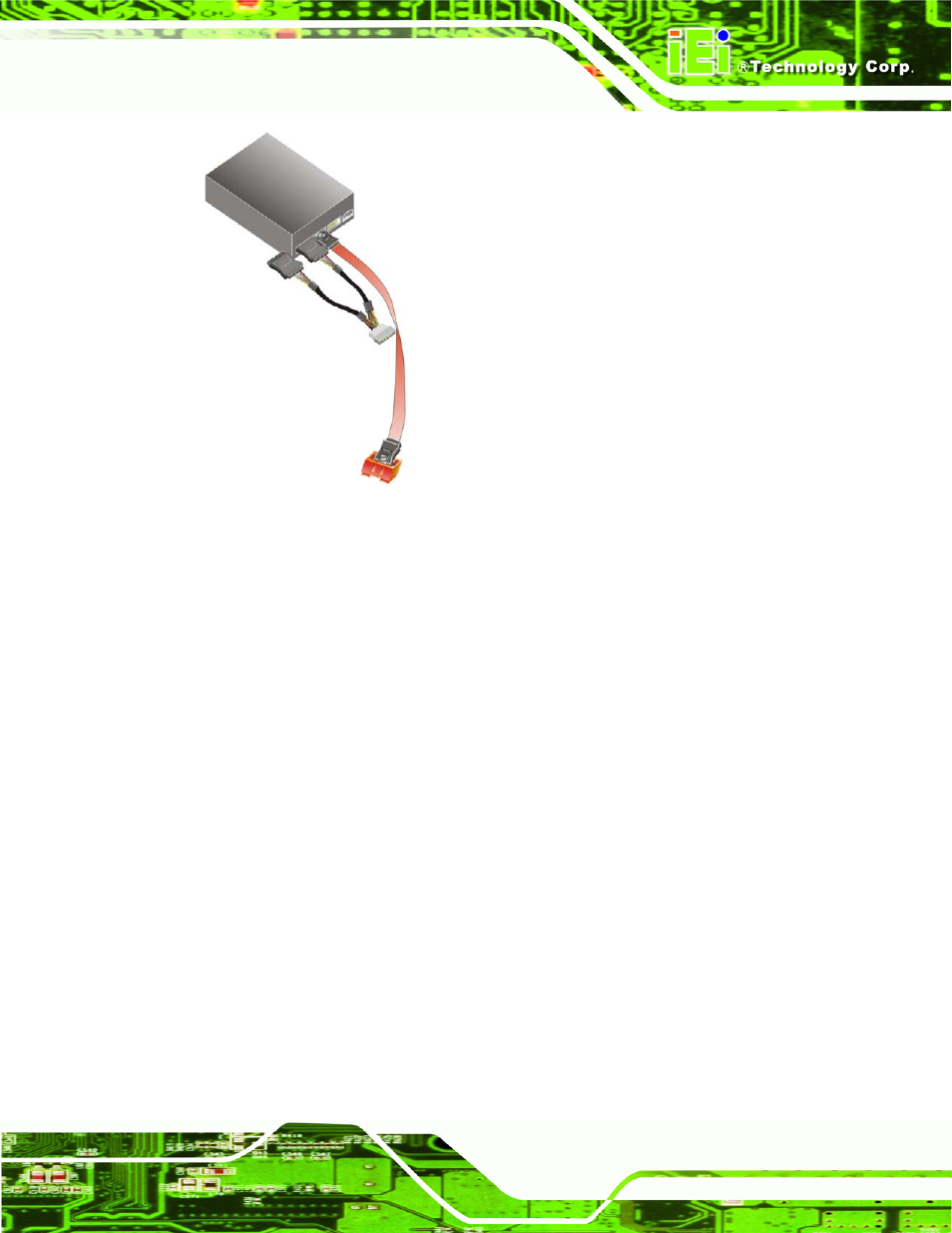

Figure 5-11: SATA Power Drive Connection

5.8.3 Dual RS-232 Cable with Slot Bracket

The dual RS-232 cable slot connector consists of two connectors attached to two

independent cables. Each cable is then attached to a D-sub 9 male connector that is

mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.

Step 1:

Locate the connectors. The locations of the RS-232 connectors are shown in

Chapter 3.

Step 2:

Insert the cable connectors. Insert one connector into each serial port box

headers. See Figure 5-12. A key on the front of the cable connectors ensures

the connector can only be installed in one direction.
