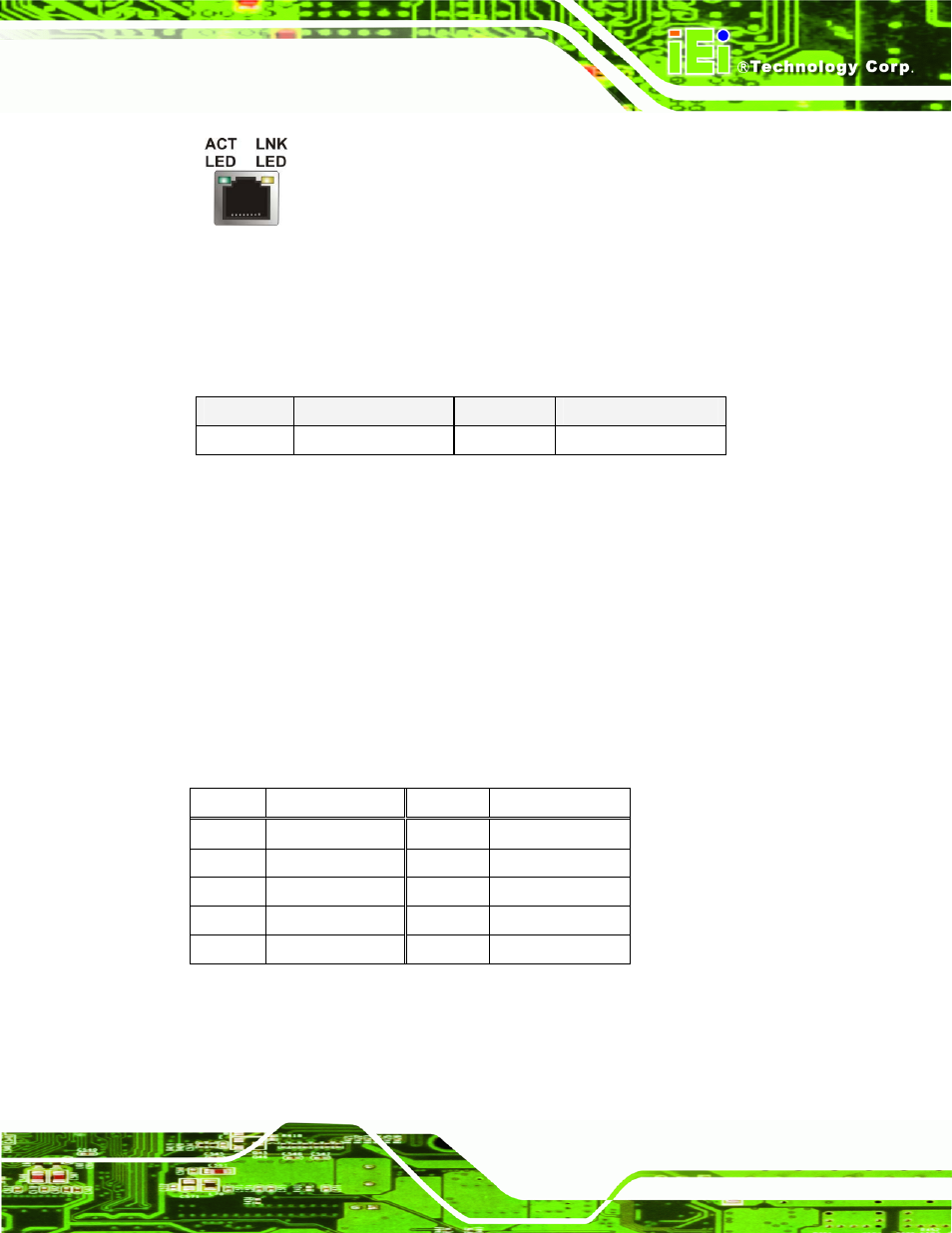

Figure 4-21: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
7
Table 4-22.
STATUS DESCRIPTION STATUS DESCRIPTION
GREEN Activity YELLOW Linked
Table 4-22: RJ-45 Ethernet Connector LEDs
4.3.5 Serial Port Connectors
CN Label: COM1 and COM2
CN Type: DB-9 connectors
CN Location: See Figure 4-18 (see 2)
CN Pinouts: See Table 4-23 and Figure 4-22
The 9-pin DB-9 COM 1 serial port connector is connected to RS-232 serial
communications devices.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
5 GND
Table 4-23: RS-232 Serial Port Pinouts
