LCD Voltage Select Description
2-3 5 V Default
Table 5-7: LVDS Voltage Selection Jumper Settings
The LVDS Voltage Selection jumper location. is shown in Figure 5-8.

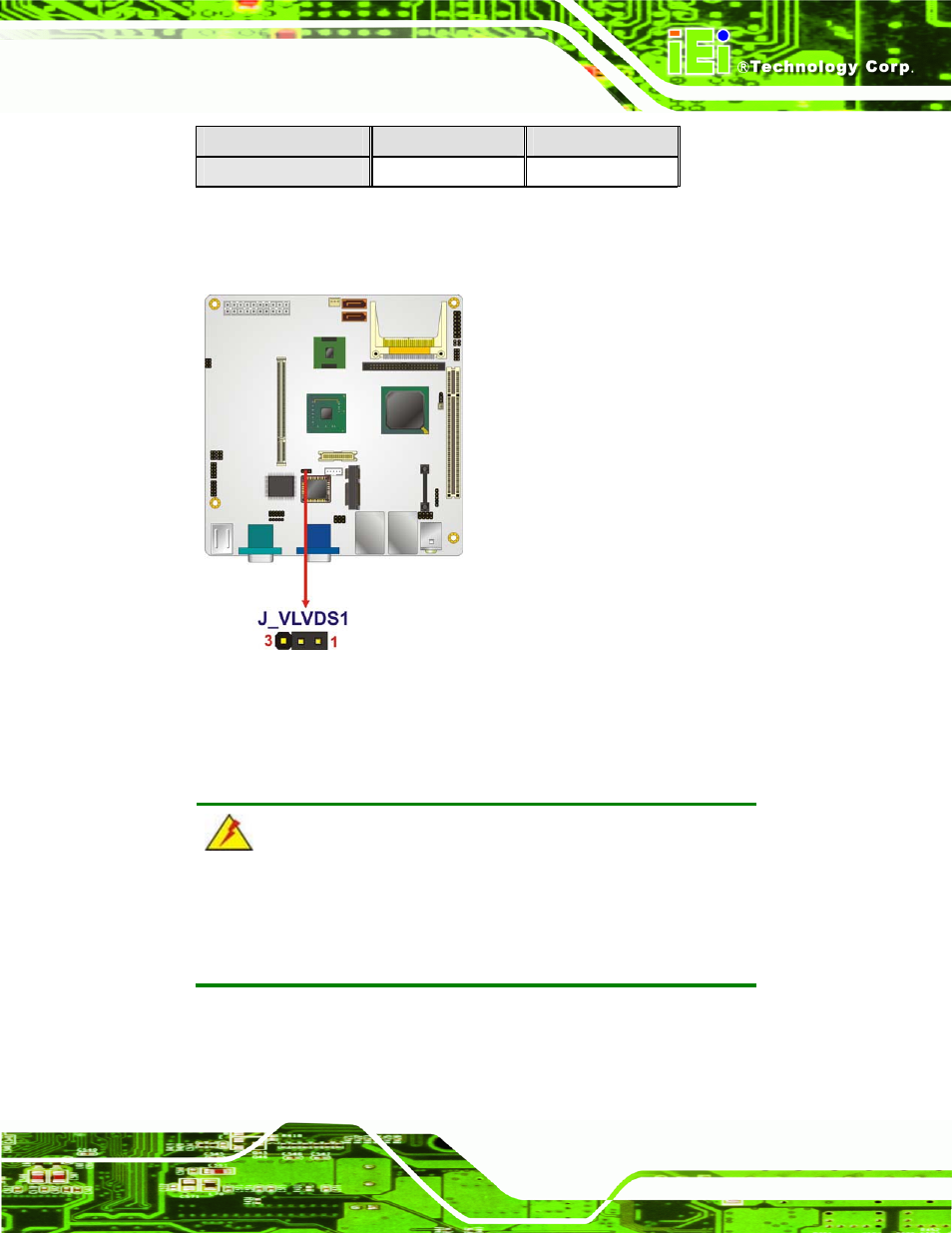

Figure 5-8: LVDS Voltage Selection Jumper Pinout Locations
5.7 Chassis Installation
5.7.1 Airflow
WARNING:
Airflow is critical to the cooling of the CPU and other onboard
components. The chassis in which the KINO-945GSE must have air
vents to allow cool air to move into the system and hot air to move out.
The KINO-945GSE must be installed in a chassis with ventilation holes on the sides
allowing airflow to travel through the heat sink surface. In a system with an individual
