KINO-945GSE Motherboard
Page 75

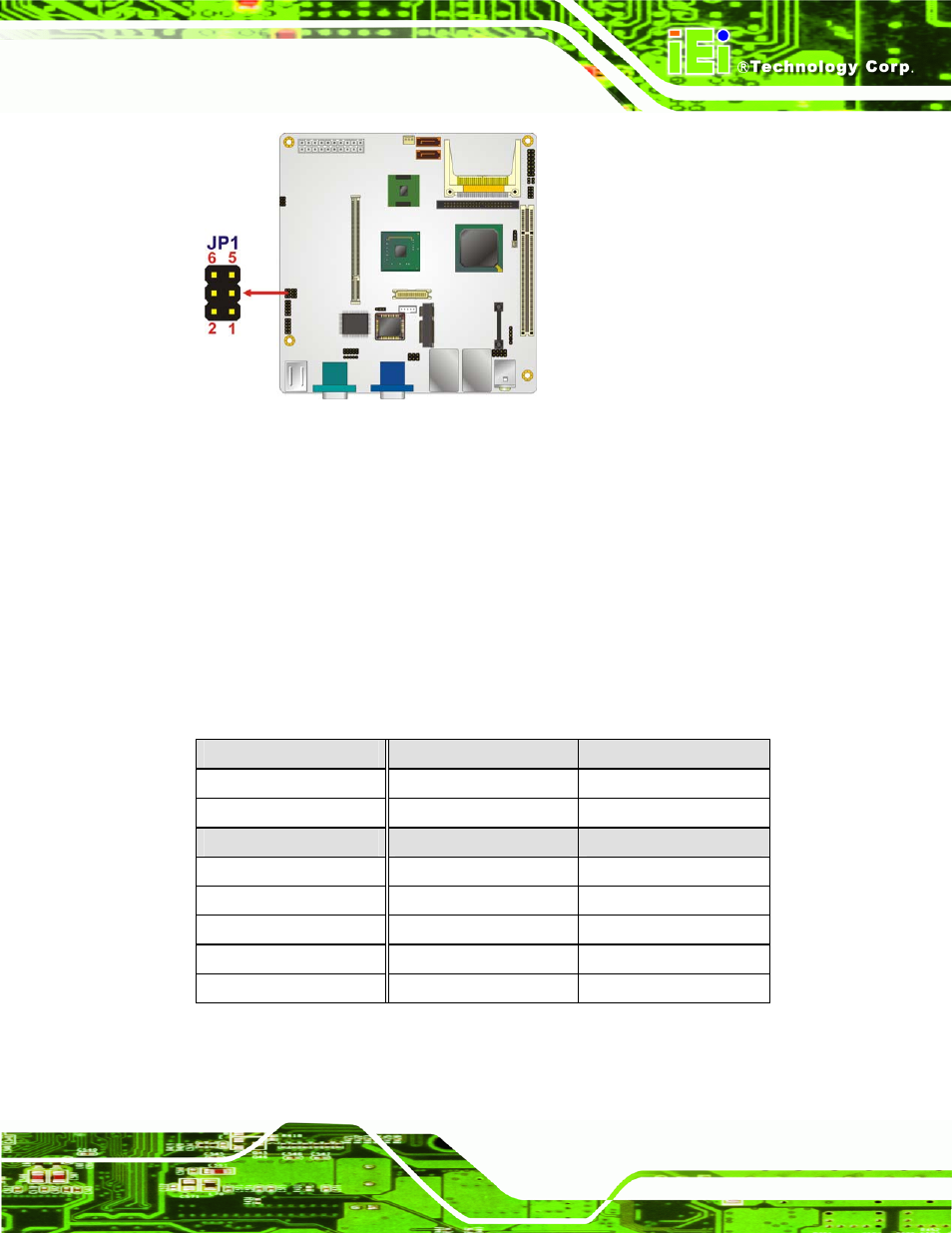

Figure 5-6: COM3 RS-232/422/485 Selection Jumper Location
5.6.5 LCD Panel Type Selection
Jumper Label: J_LCD_TYPE1
Jumper Type: 8-pin header
Jumper Settings: See Table 5-7
Jumper Location: See Figure 5-8
The LCD Panel Type Selection jumper allows the LVDS screen voltage to be set. The
LCD Panel Type Selection jumper settings are shown in Table 5-7.
LCD Panel Selection Description
Open 640 x 480 (18-bit)
1-2 800 x 480 (18-bit)
3-4 800 x 600 (18-bit) Default
1-2, 3-4 1024 x 768 (18-bit)
5-6 1280 x 1024 (36-bit)
1-2, 5-6 1400 x 1050 (36-bit)
3-4, 5-6 1400 x 900 (36-bit)
1-2, 3-4, 5-6 1600 x 1200 (36-bit)
Table 5-6: LCD Panel Type Selection Jumper Settings
The LCD Panel Type Selection jumper location is shown in Figure 5-8.
