KINO-945GSE Motherboard
Page 59
CN Pinouts: See Figure 4-20 and Table 4-19
The KINO-945GSE keyboard and mouse connectors are standard PS/2 connectors.

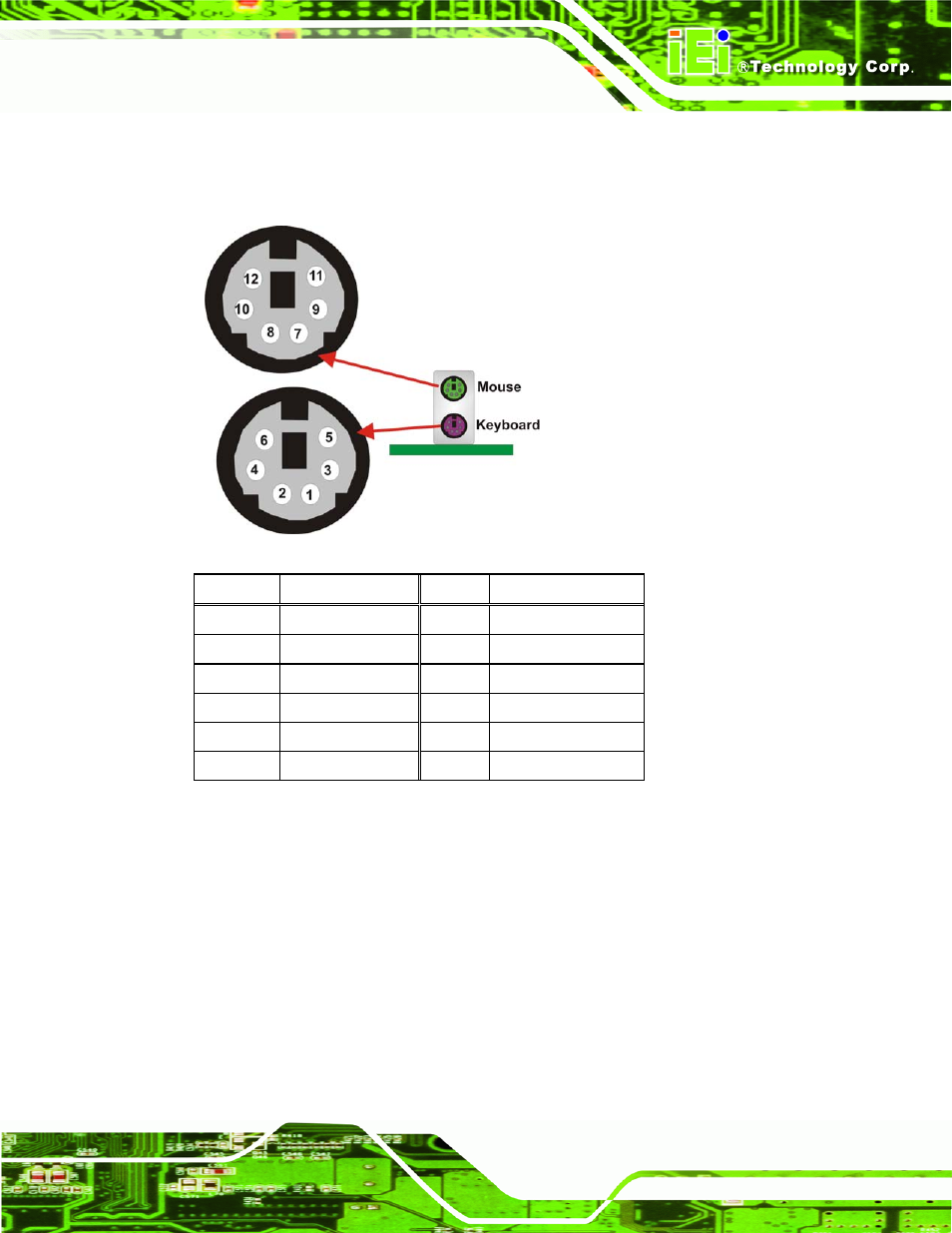

Figure 4-20: PS/2 Pinouts
PIN DESCRIPTION PIN DESCRIPTION
1 L_KDAT 7 L_MDAT
2 NC 8 NC
3 GND 9 GND
4 5 V 10 5 V
5 L_KCLK 11 L_MCLK
6 NC 12 NC
Table 4-19: PS/2 Connector Pinouts
4.3.3 DVI Connector
CN Label: VIDEO1 (bottom)
CN Type: DVI connector
CN Location: See Figure 4-18
CN Pinouts: See Figure 4-20 and Table 4-20
Connects to a monitor that supports DVI video input.
