KINO-945GSE Motherboard

Page 45

ƒ Power

LED

ƒ HDD

LED

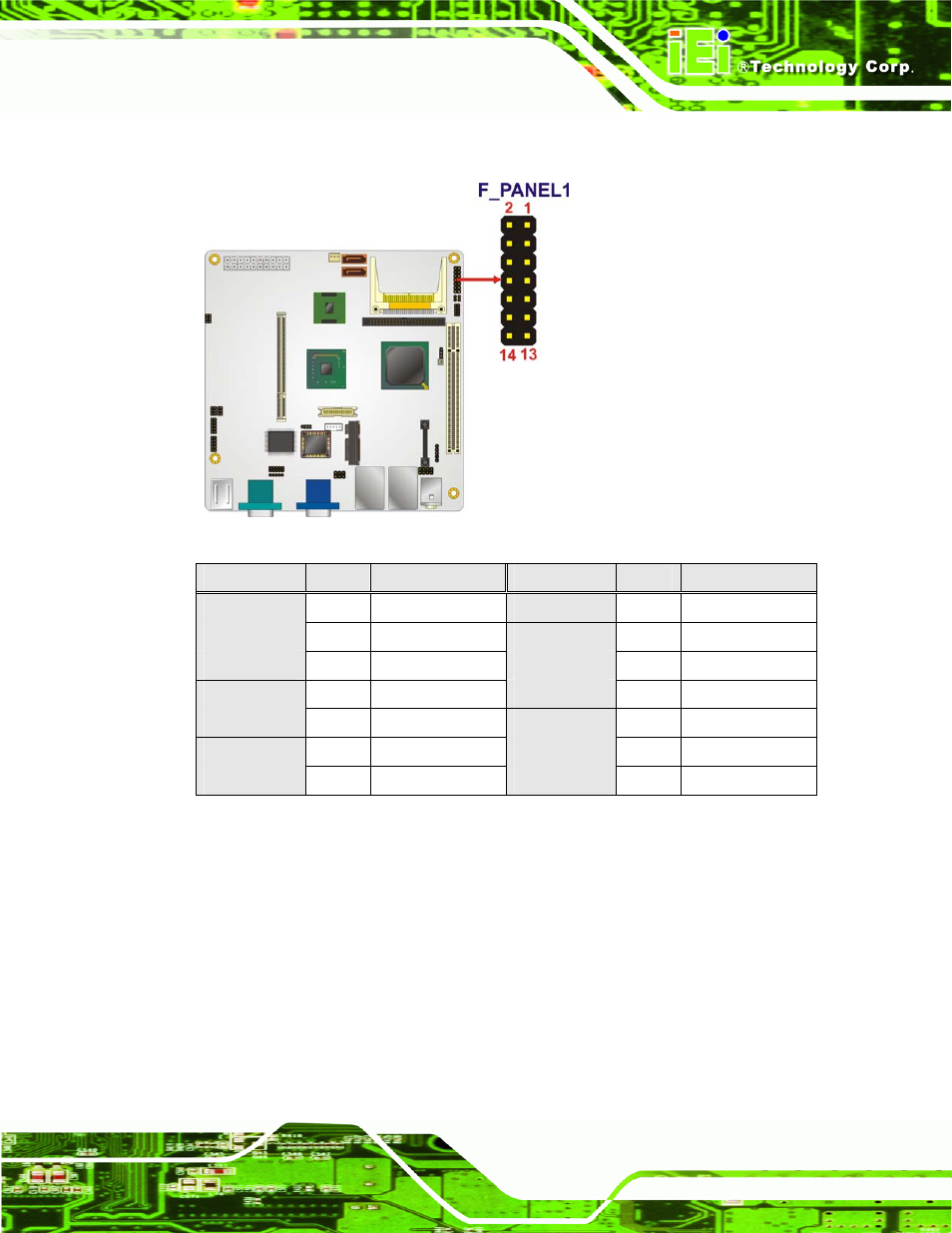

Figure 4-7: Front Panel Connector Pinout Locations

FUNCTION

PIN

DESCRIPTION

FUNCTION

PIN

DESCRIPTION

Power LED

1

Power LED +

Speaker 2 Speaker

+

3

N/C 4

N/C

5

Power LED -

6

N/C

Power Button

7

Power button +

8

Speaker

-

9

Power

button

-

Reset 10

N/C

HDD LED

11

HDD LED +

12

Reset

+

13

HDD LED -

14

Reset

-

Table 4-8: Front Panel Connector Pinouts

4.2.7 IDE Connector

CN Label:

IDE1

CN Type:

44-pin header (2x22)

CN Location:

See

7

Figure 4-8

CN Pinouts:

See

7

Table 4-9

One 44-pin IDE device connector on the KINO-945GSE supports connectivity to two hard

disk drives.
