2.4 Intel® 945GSE Northbridge Chip
The Intel® 945GSE Graphics and Memory Controller Hub (GMCH) supports the
embedded Intel® Atom™ N270 processor. The Intel® 945GSE is interfaced to the
processor through a 533 MHz FSB.

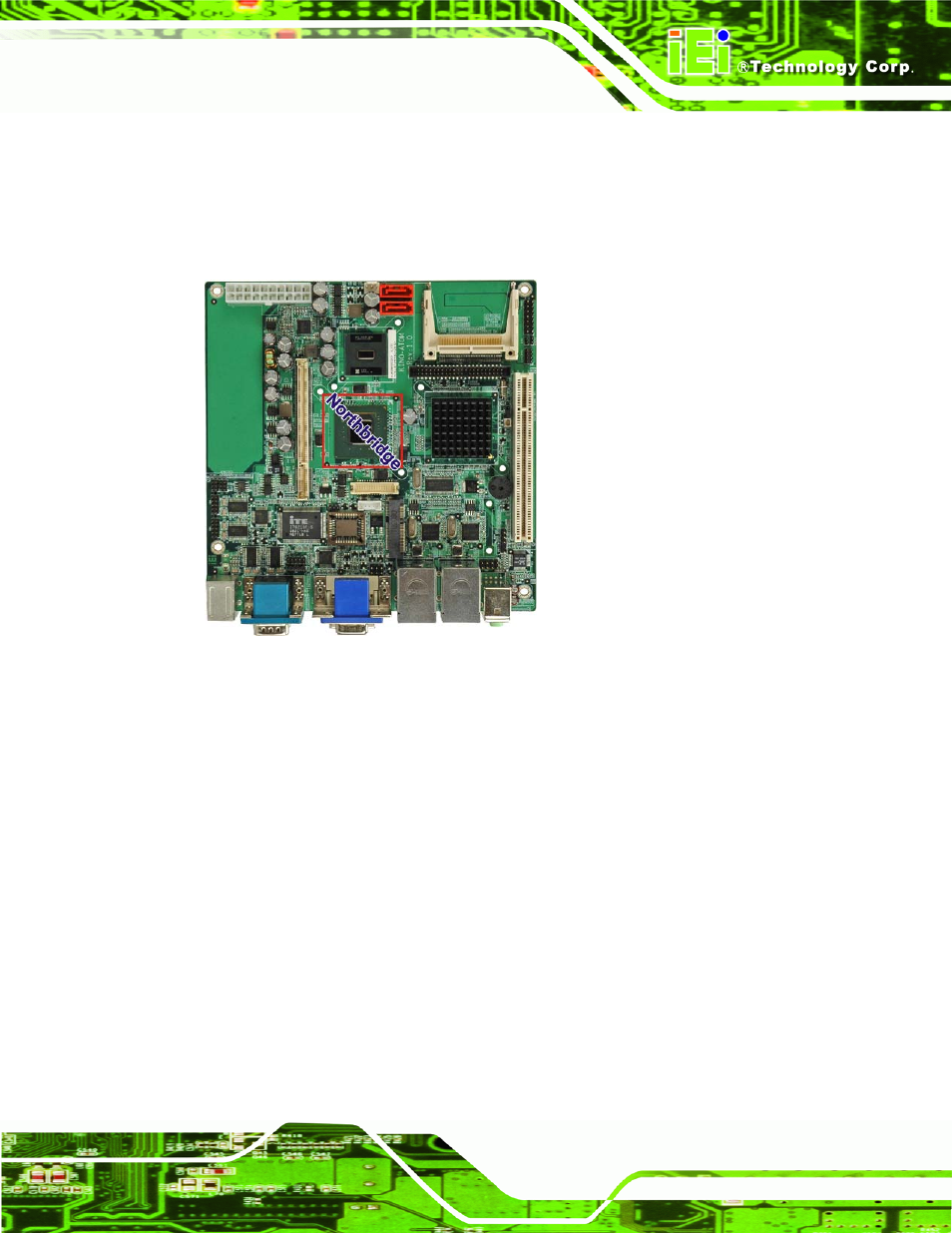

Figure 2-6: Intel® 945GSE Northbridge Chip
2.4.1 DDR2 Controller
There is one 200-pin DDR2 SO-DIMM socket on the KINO-945GSE. The socket supports
DDR2 SO-DIMM with the following specifications:
ƒ Maximum Memory supported 2 GB (1 GB per rank)
ƒ Support for DDR2 at 400 MHz and 533 MHz
ƒ No support for Dual-Channel Interleaved mode of operation
ƒ Enhanced Addressing support (Swap only)
The SO-DIMM socket is shown in Figure 2-7 below.
