KINO-945GSE Motherboard
Page 20

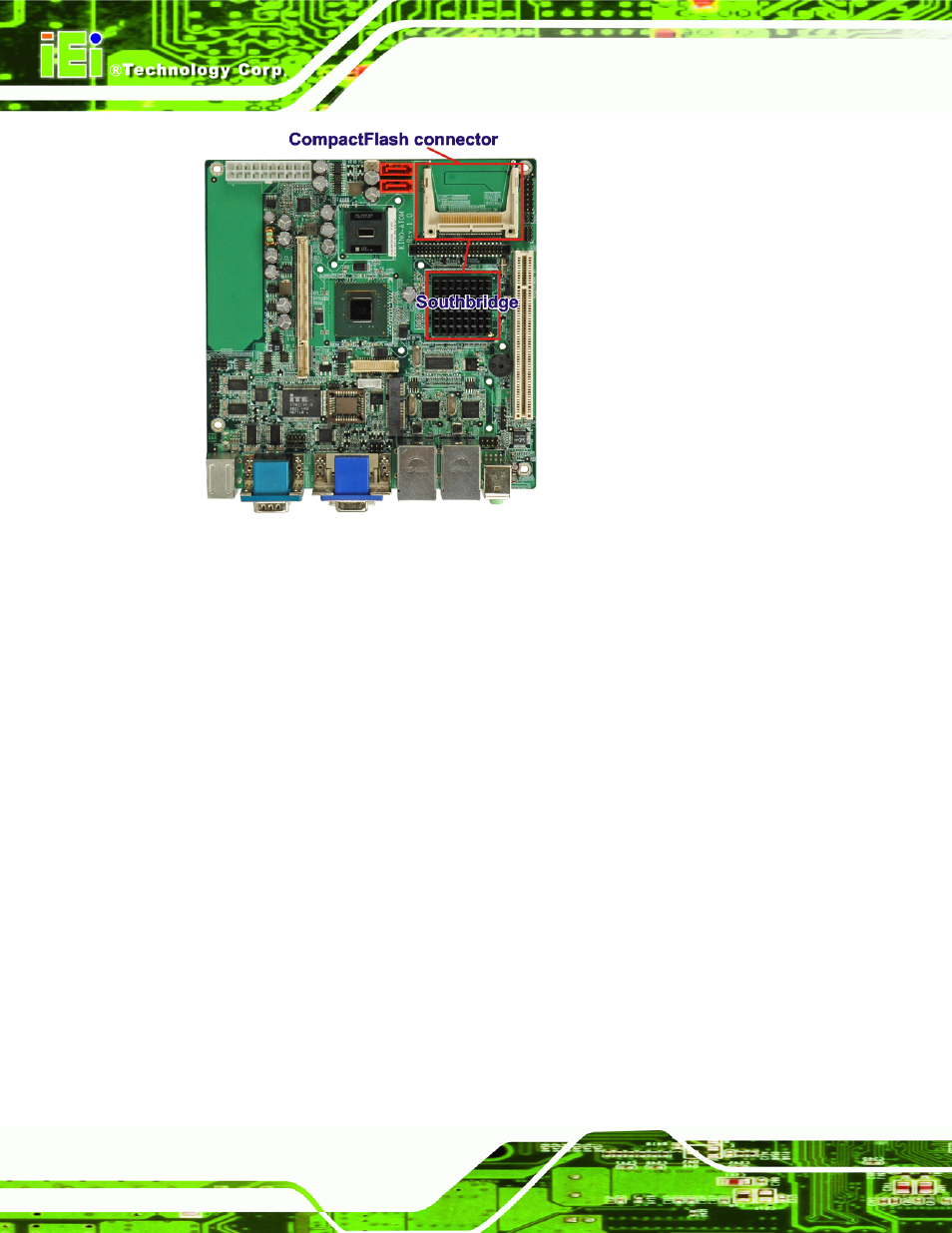

Figure 2-11: CompactFlash® Slot
2.5.3 Low Pin Count (LPC) Interface
The Intel® ICH7M LPC interface complies with the LPC 1.1 specifications. The LPC bus
from the Intel® ICH7M is connected to the following components:
ƒ BIOS chipset
ƒ Super I/O chipset
2.5.4 PCI Bus
The PCI interface on the Intel® ICH7M is compliant with the PCI Revision 2.3
implementation. Some of the features of the PCI interface are listed below.
ƒ PCI Revision 2.3 compliant
ƒ 33 MHz
ƒ 5 V tolerant PCI signals (except PME#)
ƒ Integrated PCI arbiter supports up to seven PCI bus masters
