KINO-945GSE Motherboard
Page 2
1.1 Introduction

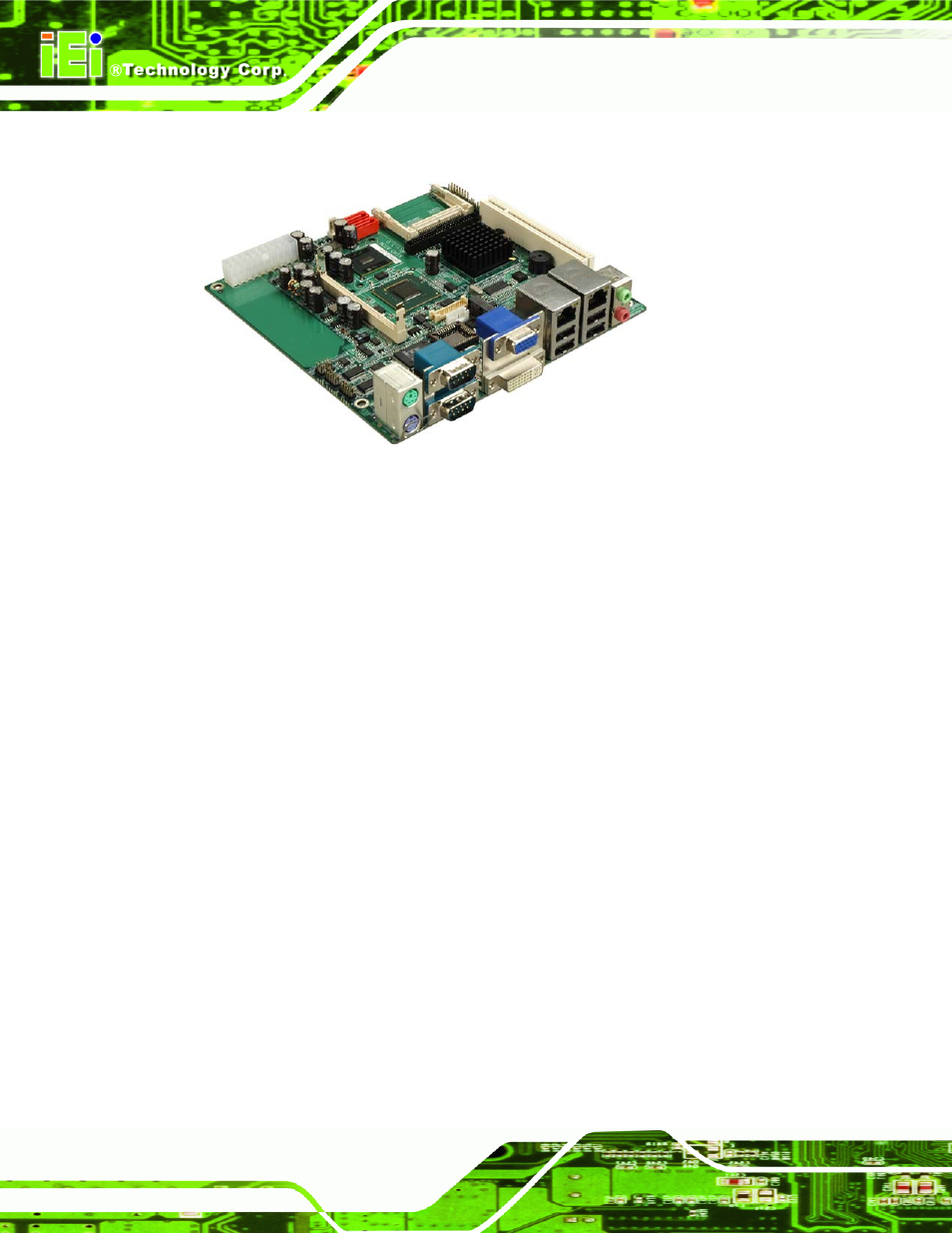

Figure 1-1: KINO-945GSE
The KINO-945GSE Mini-ITX motherboards are embedded 45 nm Intel® Atom™
processor platforms. The embedded Intel® Atom™ N270 processor has a 1.60 GHz clock
speed, a 533 MHz FSB and a 512 KB L2 cache. The KINO-945GSE also supports one
200-pin 533 MHz 2.0 GB (max.) DDR2 SDRAM SO-DIMM. The board comes with VGA,
DVI, HDTV and 18-bit dual-channel LVDS video outputs. The KINO-945GSE also comes
with two PCI Express (PCIe) Gigabit Ethernet (GbE) connectors, onboard AC’97 audio,
three RS-232 serial ports, one RS-232/422/485 serial port, a CompactFlash® slot, six
USB 2.0 ports, IDE connector and PCI expansion card slot.
1.2 KINO-945GSE Overview
1.2.1 Overview Photo
The KINO-945GSE has a wide variety of peripheral interface connectors.
6
Figure 1-2 is a
labeled photo of the peripheral interface connectors on the KINO-945GSE.
