KINO-945GSE Motherboard

Page 57

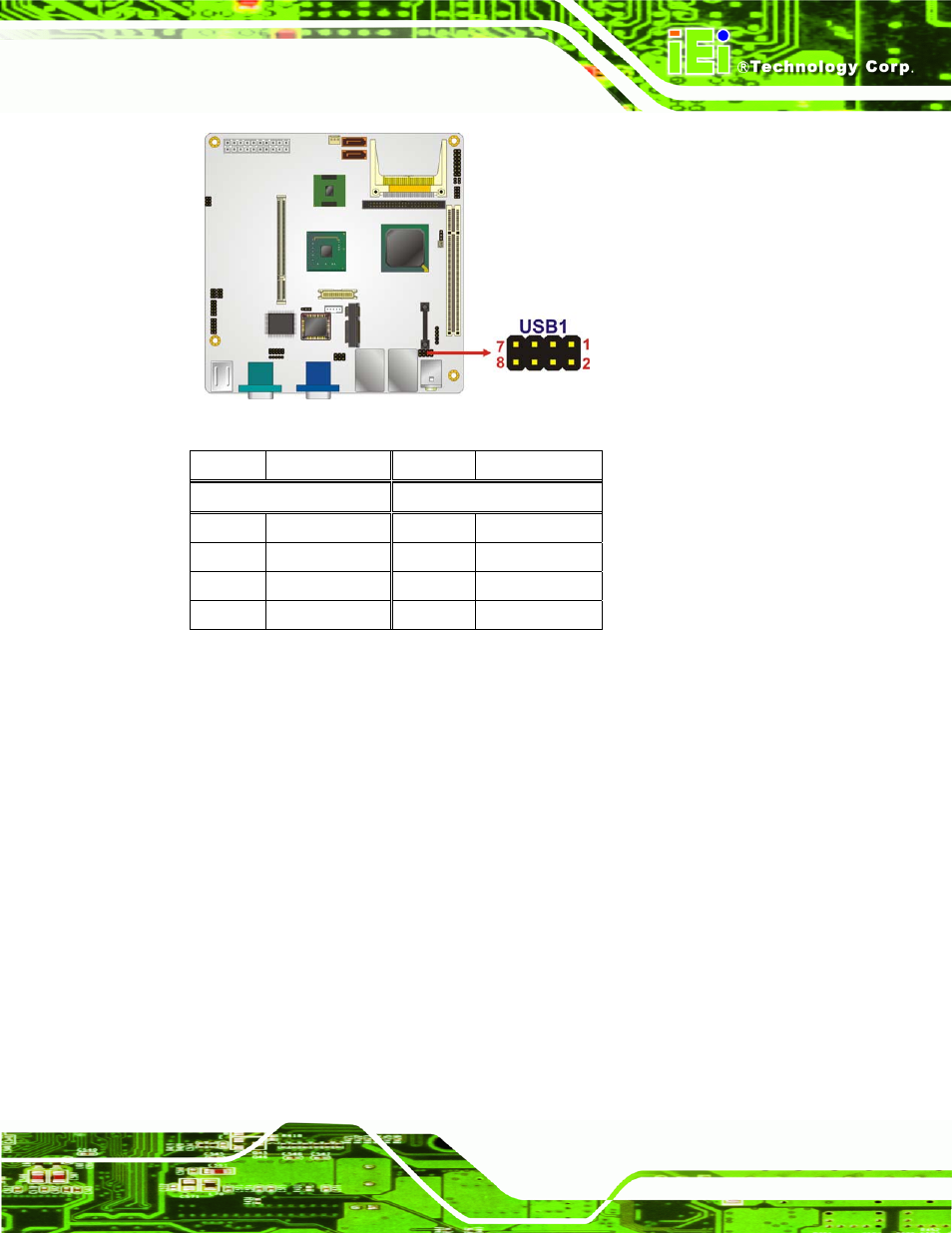

Figure 4-17: USB Connector Pinout Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

USB Connector 1

USB Connector 2

1 VCC

2 GND

3 DATA1- 4 DATA2+

5 DATA1+ 6 DATA2-

7 GND

8 VCC

Table 4-18: USB Port Connector Pinouts

4.3 External Peripheral Interface Connector Panel

7

Figure 4-18 shows the KINO-945GSE external peripheral interface connector (EPIC)

panel. The KINO-945GSE EPIC panel consists of the following:

ƒ 2 x Audio jacks

ƒ 1 x DVI connector

ƒ 2 x RJ-45 LAN connectors

ƒ 2 x PS/2 connectors

ƒ 2 x Serial port connectors

ƒ 4 x USB connectors

ƒ 1 x VGA connector
