KINO-945GSE Motherboard
Page 23
ƒ Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
ƒ Supports IEEE 802.1P Layer 2 Priority Encoding
ƒ Supports IEEE 802.1Q VLAN tagging
ƒ Serial EEPROM
ƒ Transmit/Receive on-chip buffer support
ƒ Supports power down/link down power saving
ƒ Supports PCI MSI (Message Signaled Interrupt) and MSI-X
ƒ Supports Receive-Side Scaling (RSS)
2.5.5.2 PCIe Mini Card
One PCIe lane is connected to a PCIe Mini card slot shown in Figure 2-14 below.

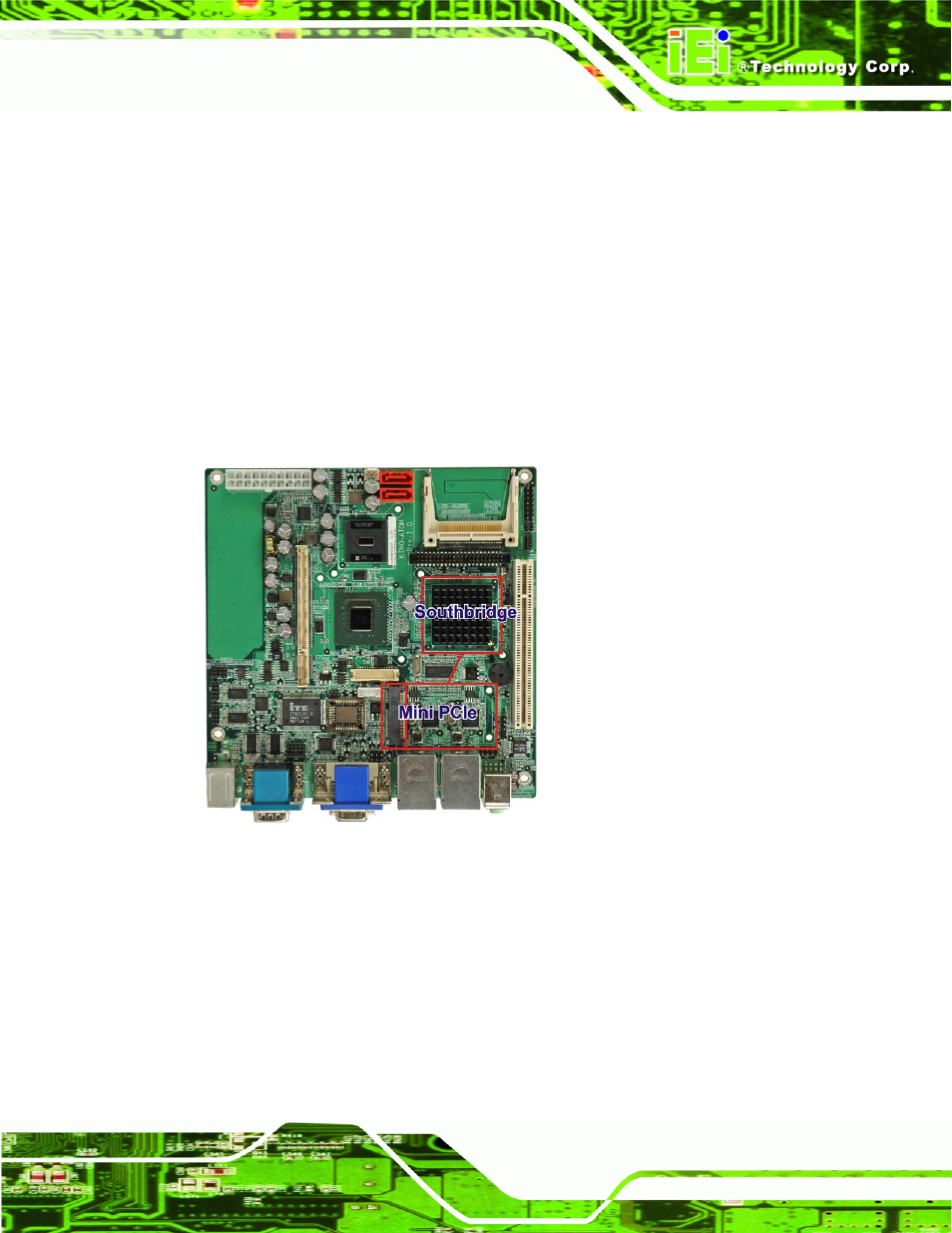

Figure 2-14: PCIe Mini Card Slot
The PCIe Mini card slot contains a PCIe x1 and USB 2.0 interface. PCIe Mini cards can
utilize either of these two interfaces, depending on design requirements.
2.5.6 Real Time Clock
256 bytes of battery backed RAM is provided by the Motorola MC146818 A real time clock
(RTC) integrated into the ICH6. The RTC operates on a 3 V battery and 32.768 KHz
