KINO-945GSE Motherboard
Page 17

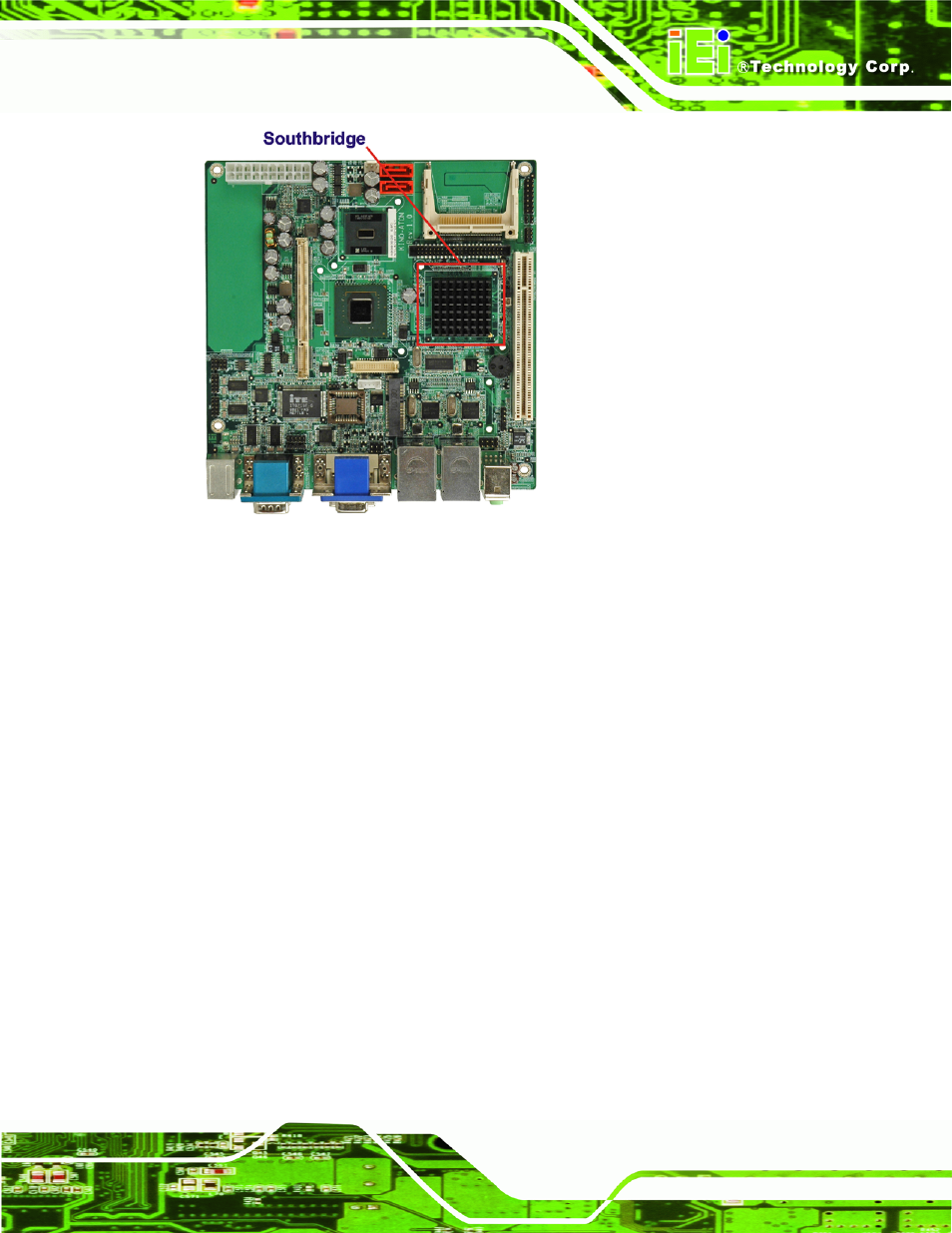

Figure 2-9: Intel® ICH7M Southbridge Chipset
ƒ Complies with PCI Express Base Specification, Revision 1.0a
ƒ Complies with PCI Local Bus Specification, Revision 2.3 and supports
33 MHz PCI operations
ƒ Supports ACPI Power Management Logic
ƒ Contains:
o Enhanced DMA controller
o Interrupt controller
o Timer functions
ƒ Integrated SATA host controller with DMA operations interfaced to two SATA
connectors on the KINO-945GSE
ƒ Integrated IDE controller supports Ultra ATA 100/66/33
ƒ Supports the four USB 2.0 devices on the KINO-945GSE with four UHCI
controllers and one EHCI controller
ƒ Complies with System Management Bus (SMBus) Specification, Version 2.0
ƒ Supports Audio Codec ’97 (AC’97) Revision 2.3
ƒ Supports Intel® High Definition Audio
ƒ Contains Low Pin Count (LPC) interface
ƒ Supports Firmware Hub (FWH) interface
ƒ Serial peripheral interface support
