KINO-945GSE Motherboard
Page 62

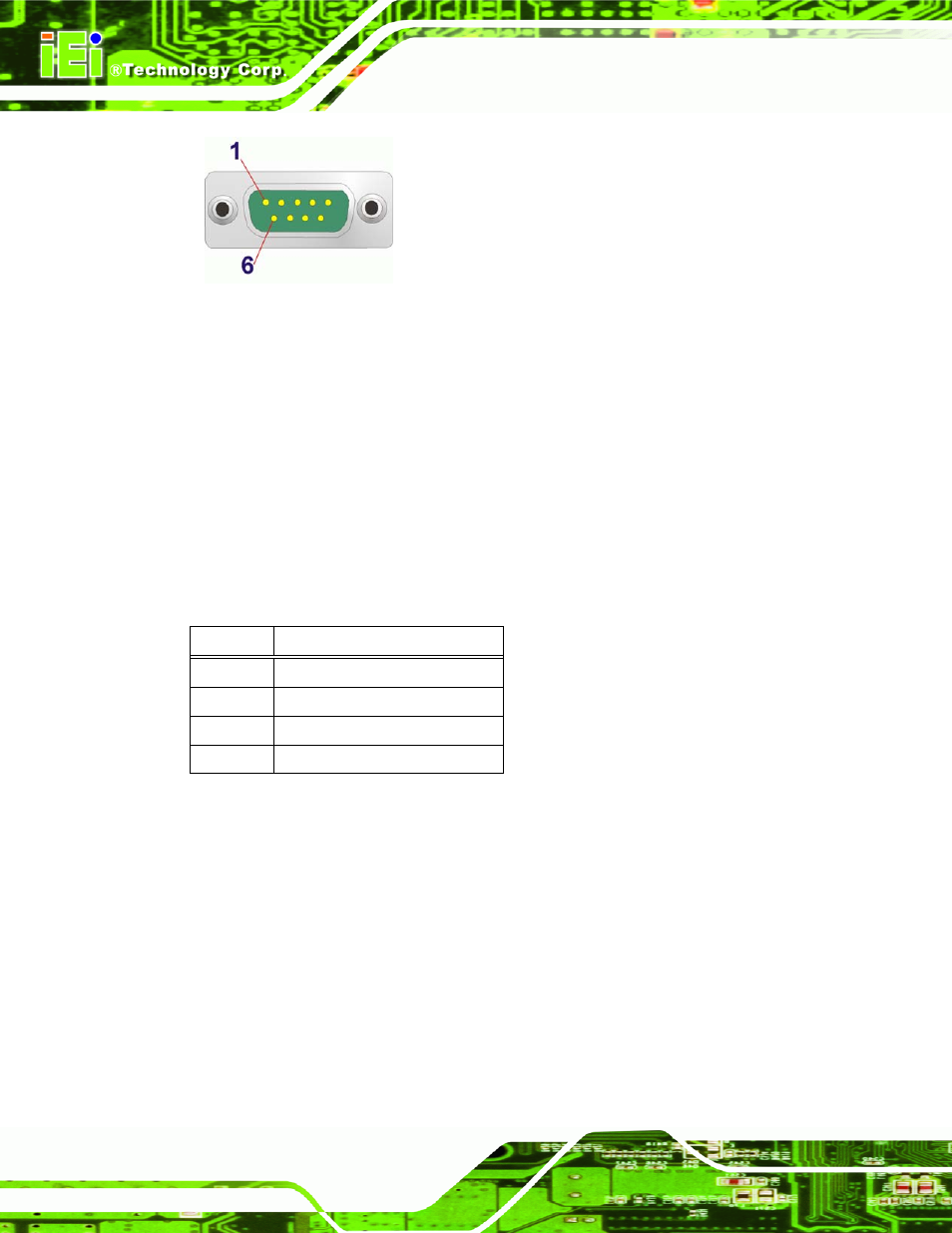

Figure 4-22: RS-232 Serial Port Pinout Locations
4.3.6 USB Connectors
CN Label: LAN/USB1 and LAN/USB2
CN Type: USB port
CN Location: See
7
Figure 4-18
CN Pinouts: See
7
Table 4-24
The KINO-945GSE has one external USB 2.0 port. The ports connect to both USB 2.0
and USB 1.1 devices.
PIN NO. DESCRIPTION
1 VCC
2 DATA-
3 DATA+
4 GND
Table 4-24: USB Port Pinouts
4.3.7 VGA Connector
CN Label: VIDEO1 (top)
CN Type: 15-pin Female
CN Location: See
7
Figure 4-18
CN Pinouts: See
7
Figure 4-23 and
7
Table 4-25
The KINO-945GSE has a single 15-pin female connector for connectivity to standard
display devices.
