KINO-945GSE Motherboard

Page 73

AT Power Select

Description

1-2

Keep CMOS Setup

Default

2-3

Clear CMOS Setup

Table 5-3: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in

Figure 5-4 below.

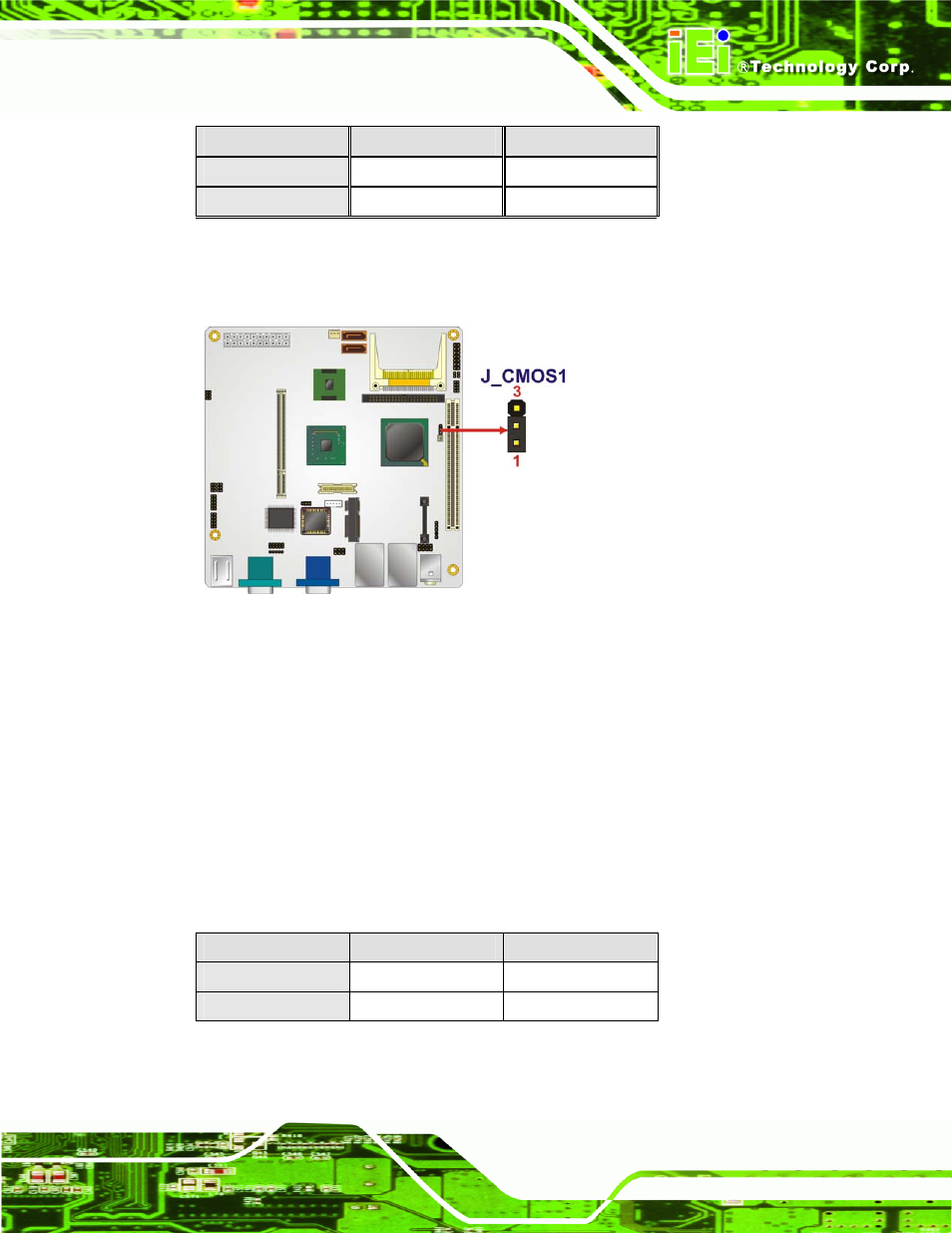

Figure 5-4: Clear CMOS Jumper

5.6.3 CF Card Setup

Jumper Label:

J_CF1

Jumper Type:

2-pin header

Jumper Settings:

See Table 5-4

Jumper Location:

See Figure 5-5

The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave

device or the master device. CF Card Setup jumper settings are shown in Table 5-4.

CF Card Setup

Description

Open Slave Default

Closed Master

Table 5-4: CF Card Setup Jumper Settings

The CF Card Setup jumper location is shown in Figure 5-5.
