KINO-945GSE Motherboard
Page 21
2.5.4.1 PCI Expansion Card Slot
The PCI interface is connected directly to the PCI expansion card slot on the
KINO-945GSE. The location of the PCI expansion card slot is shown in Figure 2-12 below.

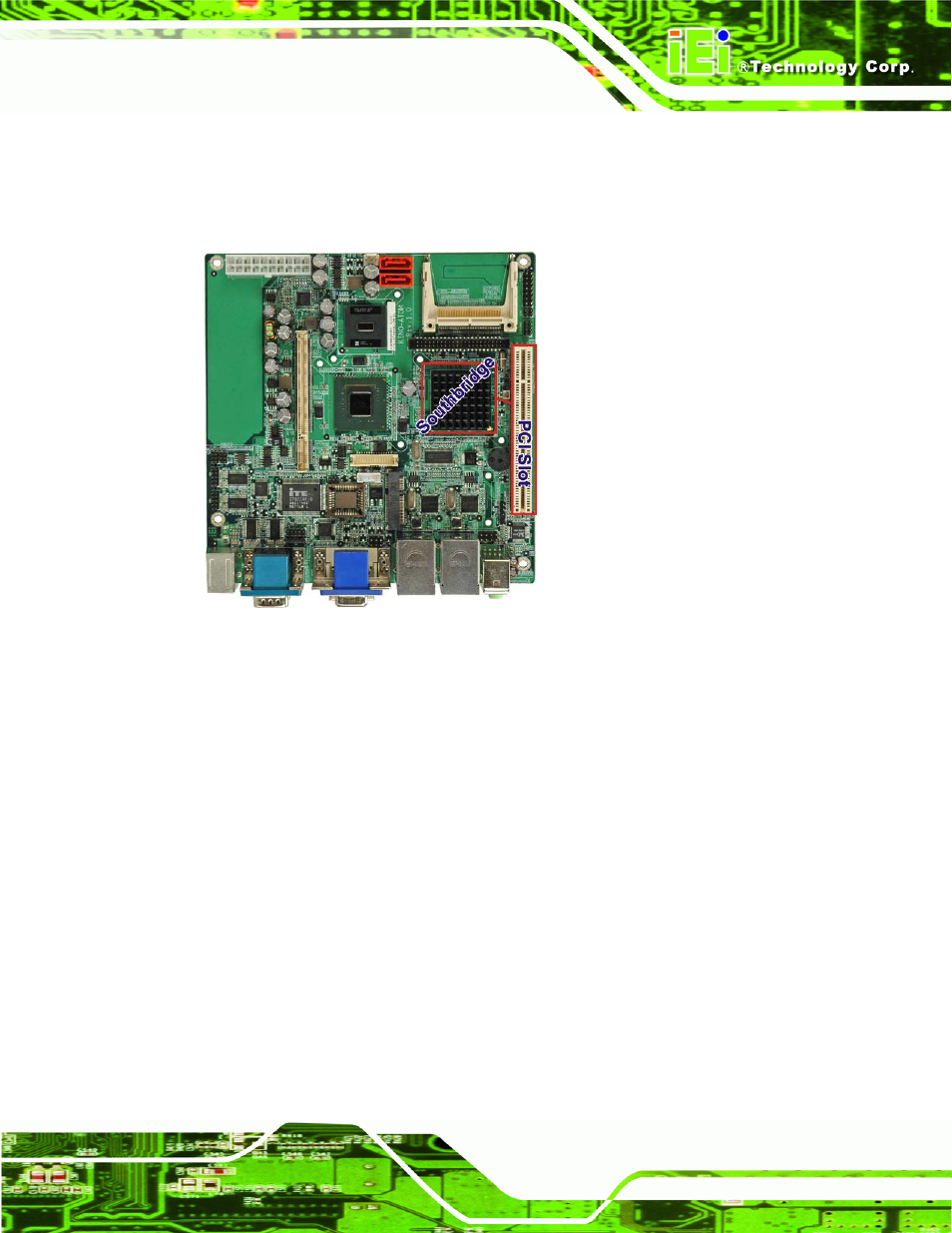

Figure 2-12: PCI Edge Connector
2.5.5 PCIe Bus
The Intel® ICH7M Southbridge chipset has four PCIe lanes. Two of the four PCIe lanes
are interfaced to PCIe GbE controllers. Another land is connected to the PCIe Mini card
slot.
2.5.5.1 PCIe GbE Ethernet
Two PCIe lanes are connected to two Realtek RTL8111C PCIe GbE controllers shown in
Figure 2-13 below.
