KINO-945GSE Motherboard

Page 85

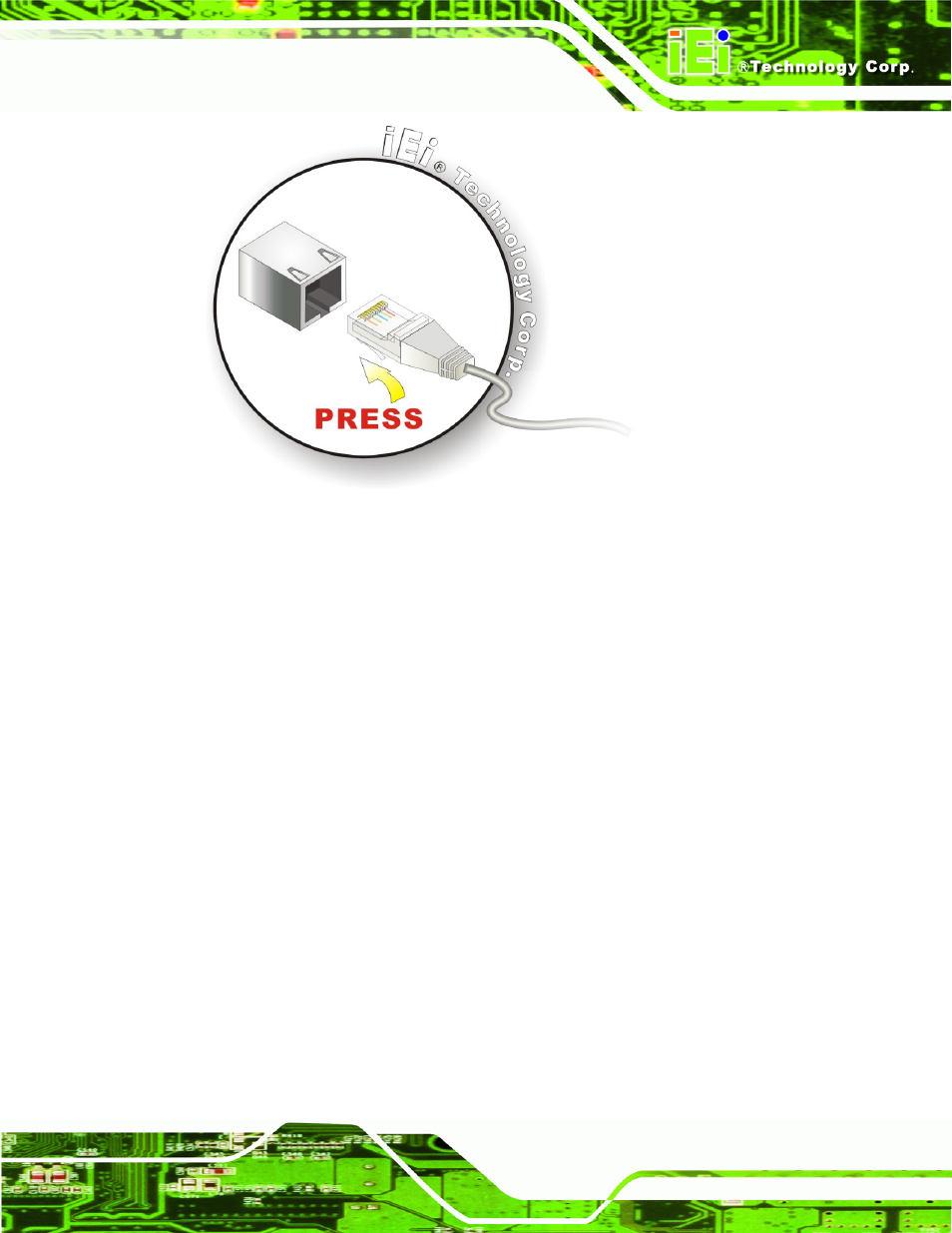

Figure 5-14: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector.

Step 0:

5.9.2 PS/2 Y-Cable Connection

The KINO-945GSE has a PS/2 connector on the external peripheral interface panel. The

dual PS/2 connector is connected to the PS/2 Y-cable that came with the KINO-945GSE.

One of the PS/2 cables is connected to a keyboard and the other to a mouse to the system.

Follow the steps below to connect a keyboard and mouse to the KINO-945GSE.

Step 1:

Locate the dual PS/2 connector. The location of the PS/2 connector is shown

in Chapter 3.

Step 2:

Insert the keyboard/mouse connector.

Insert the PS/2 connector on the end

of the PS/2 y-cable into the external PS/2 connector. See Figure 5-15.
