KINO-945GSE Motherboard
Page 68
contact the KINO-945GSE vendor reseller/vendor where the KINO-945GSE was
purchased or contact an IEI sales representative.
5.4 SO-DIMM Installation
WARNING:
Using incorrectly specified SO-DIMM may cause permanently damage
the KINO-945GSE. Please make sure the purchased SO-DIMM
complies with the memory specifications of the KINO-945GSE.
SO-DIMM specifications compliant with the KINO-945GSE are listed in
Chapter 2.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 5-1.

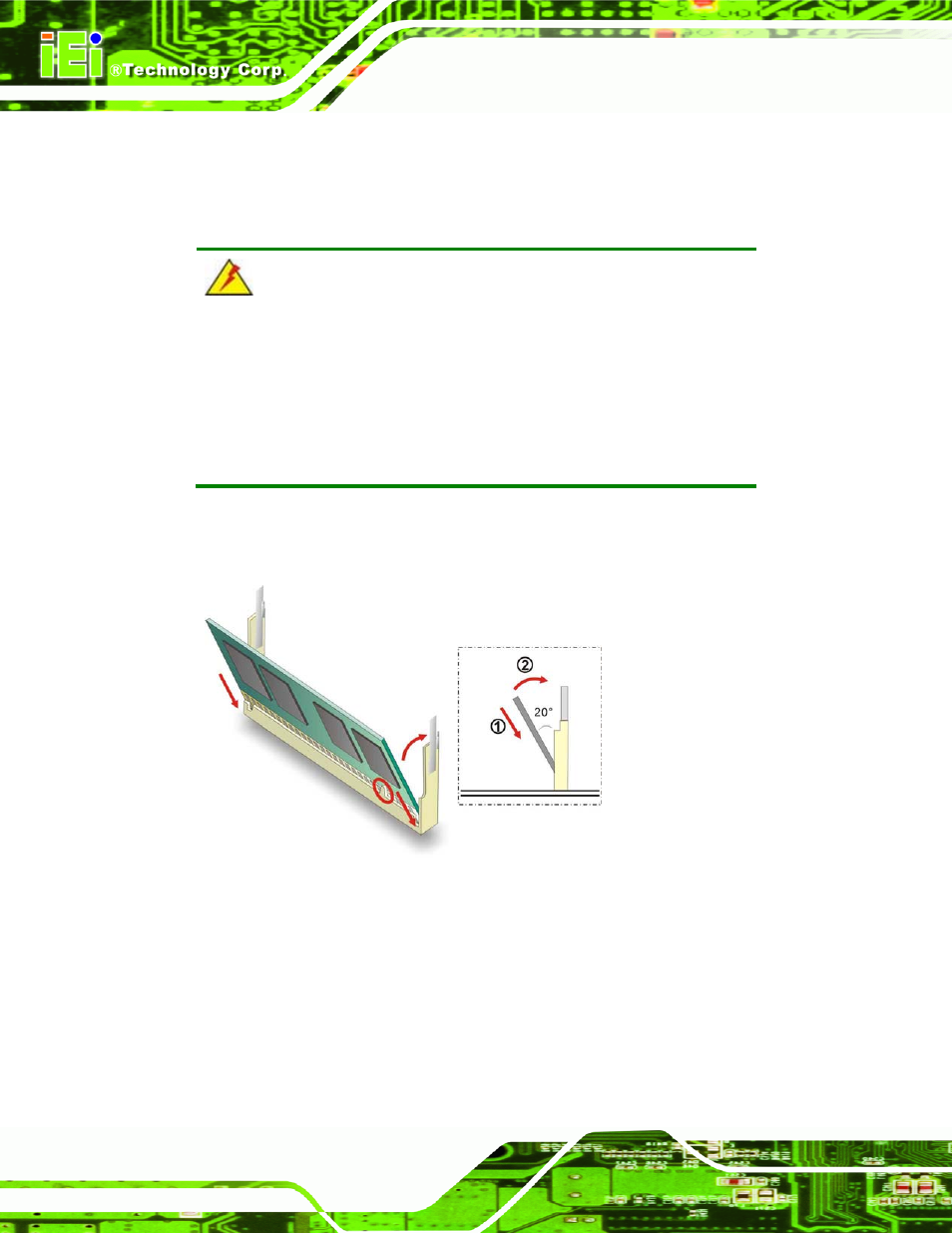

Figure 5-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the KINO-945GSE on an anti-static pad
with the solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket.
