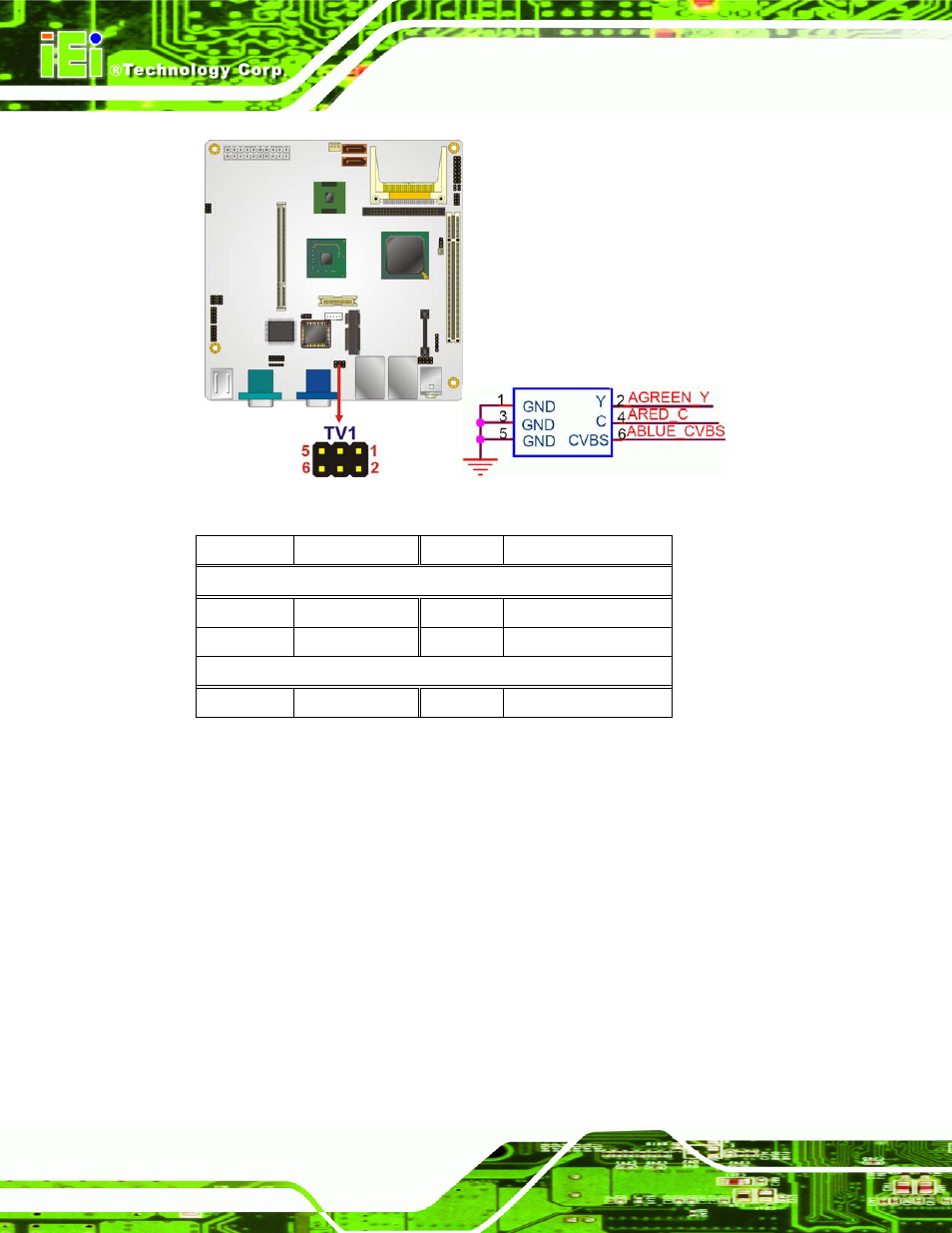

Figure 4-16: TV Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
S-Video Connector
1 GND 2 AGREEN_Y
3 GND 4 ARED_C
RCA Connector (only video signal)
5 GND 6 ABLUE_CVBS
Table 4-17: TV Port Connector Pinouts
4.2.16 USB Connectors
CN Label: USB1
CN Type: 8-pin header (2x4)
CN Location: See
7
Figure 4-17
CN Pinouts: See
7
Table 4-18
The 2x4 USB pin connector provides connectivity to two USB 1.1 or two USB 2.0 ports.
The USB connector can support two USB devices. Additional external USB ports are
found on the rear panel. The USB ports are used for I/O bus expansion.
